15# SMD LED strips connector 8mm 3pin strip to wire to strip
Description
Mini Crystal LED Strip Connector –Strip to Strip (with wires)
IP20 Mini Crystal Series
| NO. | ITEM NO. | NO. | ITEM NO. | NO. | ITEM NO. | NO. | ITEM NO. |
|---|---|---|---|---|---|---|---|
| 1# | HR-S-SC-2PIN-5MM-B | 2# | HR-S-SC-2PIN-5MM-A | 3# | HR-S-SC-2PIN-5MM-C | 4# | HR-S-SC-2PIN-5MM-D |
| 5# | HR-S-SC-3PIN-5MM-B | 6# | HR-S-SC-3PIN-5MM-A | 7# | HR-S-SC-3PIN-5MM-C | 8# | HR-S-SC-3PIN-5MM-D |
| 9# | HR-S-SC-2PIN-8MM-B | 10# | HR-S-SC-2PIN-8MM-A | 11# | HR-S-SC-2PIN-8MM-C | 12# | HR-S-SC-2PIN-8MM-D |
| 13# | HR-S-SC-3PIN-8MM-B | 14# | HR-S-SC-3PIN-8MM-A | 15# | HR-S-SC-3PIN-8MM-C | 16# | HR-S-SC-3PIN-8MM-D |
| 17# | HR-S-SC-4PIN-8MM-B | 18# | HR-S-SC-4PIN-8MM-A | 19# | HR-S-SC-4PIN-8MM-C | 20# | HR-S-SC-4PIN-8MM-D |
| 21# | HR-S-SC-2PIN-10MM-B | 22# | HR-S-SC-2PIN-10MM-A | 23# | HR-S-SC-2PIN-10MM-C | 24# | HR-S-SC-2PIN-10MM-D |
| 25# | HR-S-SMD-2PIN-10MM-B | 26# | HR-S-SMD-2PIN-10MM-A | 27# | HR-S-SMD-2PIN-10MM-C | 28# | HR-S-SMD-2PIN-10MM-D |
| 29# | HR-S-SMD-3PIN-10MM-B | 30# | HR-S-SMD-3PIN-10MM-A | 31# | HR-S-SMD-3PIN-10MM-C | 32# | HR-S-SMD-3PIN-10MM-D |
| 33# | HR-S-COB-3PIN-10MM-B | 34# | HR-S-COB-4PIN-10MM-A | 35# | HR-S-COB-3PIN-10MM-C | 36# | HR-S-COB-4PIN-10MM-D |
| 37# | HR-S-COB-4PIN-10MM-B | 34# | HR-S-COB-4PIN-10MM-A | 38# | HR-S-COB-4PIN-10MM-C | 36# | HR-S-COB-4PIN-10MM-D |
| 39# | HR-S-SMD-4PIN-10MM-B | 40# | HR-S-SMD-4PIN-10MM-A | 41# | HR-S-SMD-4PIN-10MM-C | 42# | HR-S-SMD-4PIN-10MM-D |
| 43# | HR-S-SMD-5PIN-10MM-B | 44# | HR-S-SMD-5PIN-10MM-A | 45# | HR-S-SMD-5PIN-10MM-C | 46# | HR-S-SMD-5PIN-10MM-D |
| 47# | HR-S-SMD-2PIN-12MM-B | 48# | HR-S-SMD-2PIN-12MM-A | 49# | HR-S-SMD-2PIN-12MM-C | 50# | HR-S-SMD-2PIN-12MM-D |
| 51# | HR-S-SMD-3PIN-12MM-B | 52# | HR-S-SMD-3PIN-12MM-A | 53# | HR-S-SMD-3PIN-12MM-C | 54# | HR-S-SMD-3PIN-12MM-D |
| 55# | HR-S-SC-4PIN-12MM-B | 56# | HR-S-SC-4PIN-12MM-A | 57# | HR-S-SC-4PIN-12MM-C | 58# | HR-S-SC-4PIN-12MM-D |
| 59# | HR-S-SMD-5PIN-12MM-B | 60# | HR-S-SMD-5PIN-12MM-A | 61# | HR-S-SMD-5PIN-12MM-C | 62# | HR-S-SMD-5PIN-12MM-D |
| 63# | HR-S-COB-5PIN-12MM-B | 64# | HR-S-COB-5PIN-12MM-A | 65# | HR-S-COB-5PIN-12MM-C | 66# | HR-S-COB-5PIN-12MM-D |
| 67# | HR-S-SMD-6PIN-12MM-B | 68# | HR-S-SMD-6PIN-12MM-A | 69# | HR-S-SMD-6PIN-12MM-C | 70# | HR-S-SMD-6PIN-12MM-D |
| 115# | HR-S-SC-2PIN-8MM-E | 116# | HR-S-SMD-6PIN-12MM-E |
Waterproof Series
| NO. | ITEM NO. | NO. | ITEM NO. | NO. | ITEM NO. |
|---|---|---|---|---|---|
| 71# | HR-IP-SC-2PIN-8MM-B | 72# | HR-IP-SC-2PIN-8MM-A | 73# | HR-IP-SC-2PIN-8MM-C |
| 74# | HR-IP-SC-3PIN-8MM-B | 75# | HR-IP-SC-3PIN-8MM-A | 76# | HR-IP-SC-3PIN-8MM-C |
| 77# | HR-IP-SC-2PIN-10MM-B | 78# | HR-IP-SC-2PIN-10MM-A | 79# | HR-IP-SC-2PIN-10MM-C |
| 80# | HR-IP-SMD-2PIN-10MM-B | 81# | HR-IP-SMD-2PIN-10MM-A | 82# | HR-IP-SMD-2PIN-10MM-C |
| 83# | HR-IP-SMD-3PIN-10MM-B | 84# | HR-IP-SMD-3PIN-10MM-A | 85# | HR-IP-SMD-3PIN-10MM-C |
| 86# | HR-IP-COB-3PIN-10MM-B | 87# | HR-IP-COB-4PIN-10MM-A | 88# | HR-IP-COB-3PIN-10MM-C |
| 89# | HR-IP-COB-4PIN-10MM-B | 87# | HR-IP-COB-4PIN-10MM-A | 90# | HR-IP-COB-4PIN-10MM-C |
| 91# | HR-IP-SMD-4PIN-10MM-B | 92# | HR-IP-SMD-4PIN-10MM-A | 93# | HR-IP-SMD-4PIN-10MM-C |
| 94# | HR-IP-SMD-5PIN-10MM-B | 95# | HR-IP-SMD-5PIN-10MM-A | 96# | HR-IP-SMD-5PIN-10MM-C |
| 97# | HR-IP-SMD-2PIN-12MM-B | 98# | HR-IP-SMD-2PIN-12MM-A | 99# | HR-IP-SMD-2PIN-12MM-C |
| 100# | HR-IP-SMD-3PIN-12MM-B | 101# | HR-IP-SMD-3PIN-12MM-A | 102# | HR-IP-SMD-3PIN-12MM-C |
| 103# | HR-IP-SC-4PIN-12MM-B | 104# | HR-IP-SC-4PIN-12MM-A | 105# | HR-IP-SC-4PIN-12MM-C |
| 106# | HR-IP-COB-5PIN-12MM-B | 107# | HR-IP-COB-5PIN-12MM-A | 108# | HR-IP-COB-5PIN-12MM-C |
| 109# | HR-IP-SMD-5PIN-12MM-B | 110# | HR-IP-SMD-5PIN-12MM-A | 111# | HR-IP-SMD-5PIN-12MM-C |
| 112# | HR-IP-SMD-6PIN-12MM-B | 113# | HR-IP-SMD-6PIN-12MM-A | 114# | HR-IP-SMD-6PIN-12MM-C |
Specification for Mini Crystal LED Strip Connector
Strip to Strip (With wires) Series
Mini Crystal LED strip connector is a transparent PC material connector, mainly suitable for IP20 COB & SMD strip with matching pads. It has the characteristics of reliable connection, invisible seamless lighting, perfect solution for aluminum profile application, and DIY connection without stripping.
1. Naming Rule
2. Item No.
3# HR-S-SC-2PIN-5MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 COB & SMD strips, 5mm width PCB, 22AWG Wires, 2PIN single color
11# HR-S-SC-2PIN-8MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 COB & SMD strips, 8mm width PCB, 22AWG Wires, 2PIN single color
15# HR-S-SMD-3PIN-8MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 SMD strips, 8mm width PCB, 15CM 20AWG Wires, 3PIN CCT color
19# HR-S-SMD-4PIN-8MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 SMD strips, 8mm width PCB, 15CM 20AWG Wires, 4PIN RGBcolor
23# HR-S-SC-2PIN-10MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 COB & SMD strips, 10mm width PCB, 22AWG Wires, 2PIN single color
27# HR-S-SMD-2PIN-10MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 SMD strips, 10mm width PCB, 15CM 20AWG Wires, 2PIN single color
31# HR-S-SMD-3PIN-10MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 SMD strips, 10mm width PCB, 15CM 20AWG Wires, 3PIN CCT color
35# HR-S-SMD-3PIN-10MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 SMD strips, 10mm width PCB, 15CM 20AWG Wires, 3PIN CCT color
38# HR-S-COB-4PIN-10MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 COB RGB strips, 10mm width PCB, 15CM 22AWG Wires, 4PIN RGBW color
41# HR-S-SMD-4PIN-10MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 SMD strips, 10mm width PCB, 15CM 20AWG Wires, 4PIN RGB color
45# HR-S-SMD-5PIN-10MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 SMD strips, 10mm width PCB, 15CM 20AWG Wires, 5PIN RGBW color
49# HR-S-SMD-2PIN-12MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 SMD strips, 12mm width PCB, 15CM 20AWG Wires, 2PIN single color
53# HR-S-SMD-3PIN-12MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 SMD strips, 12mm width PCB, 15CM 20AWG Wires, 3PIN CCT color
57# HR-S-SC-4PIN-12MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 COB & SMD strips, 12mm width PCB, 22AWG Wires, 4PIN RGB color
61# HR-S-SMD-5PIN-12MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 SMD strips, 12mm width PCB, 15CM 20AWG Wires, 5PIN RGBW color
65# HR-S-COB-5PIN-12MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 COB strips, 12mm width PCB, 15CM 20AWG Wires, 5PIN RGBW color
69# HR-S-SMD-6PIN-12MM-C
Strip to Strip (With 15cm Wires), mainly suitable for IP20 COB strips, 12mm width PCB, 15CM 20AWG Wires, 6PIN RGBCCT color
3. Product advantages
COB Series
SMD Series
High transparent PC material, good light transmission
Guide slot introduction, anti-shake, more reliable fixed connection

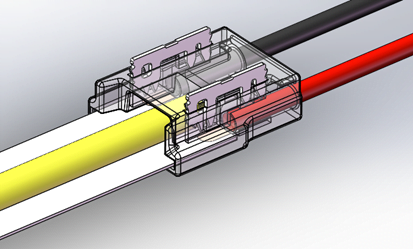

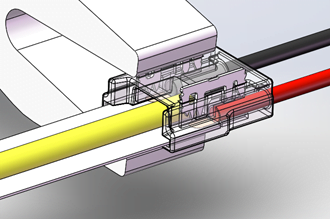

4. Instruction
(The picture shows the 2pin operation, refer to this The operation of 3~6pin products is the same.)
- Prepare led strip
- Cut from the middle of the pad
- Prepare wires
- Push the strip into the connectors
- Use pliers to clamp the terminal to the level of the plastic surface , the operation is unilateral operation, clamp one side and then operate the other side.
- Finished

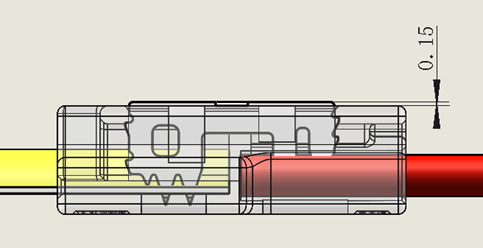

Note: After pressing in, the contact terminal is allowed to be 0.15 MAX higher than the plastic plane
5. Technical Parameters
5.1 Product parameters
- Rated Current: 6A Max
- Rated voltage: 5V/9V/12V/18V/24V/36V/48V
- Withstand voltage: 500V
- Temperature resistance: 105℃
- Working temperature: -20℃ ~ +80℃
- Salt spray test: neutral salt spray 24H
- Allowable humidity: 15%~90%
- Applicable strip specifications: IP20 SMD & COB strip
5.2 Yiford PCB Circuit Laying Rules
（Before purchasing connectors, please ensure that the led strip meets the following wiring requirements. Customer complaints caused by PCB wiring problems are not covered by the warranty.）:
- No.1 copper foil design needs to be laid in a straight line within this range;
- No.2 Cut the middle line;
- No.3 copper foil center distance design, the center symmetry with the outer width of the light strip is 0.2 Max;
- No.4 light strip design thickness 0.30 Max
- No.5 lamp beads allow the maximum height, the tolerance range is ±0.2;
- No.6 total height after sticking adhesive: 0.55±0.1;
- No. 7 Minimum size of lamp bead laying position;
- No. 8 Design requirements for the outer width of the light strip;
All lamp beads and the outer width of the lamp strip have a center symmetry of 0.5 Max;
HR-S-SC-8MM-2PIN
HR-IP-SC-10MM-2PIN
HR-S-SC-10MM-2PIN
HR-S-SMD-10MM-3PIN
HR-S-COB-10MM-3PIN
HR-S-COB-10MM-4PIN
HR-S-SMD-10MM-4PIN
HR-S-SMD-12MM-5PIN
HR-S-SMD-12MM-5PIN
HR-S-SMD-12MM-6PIN

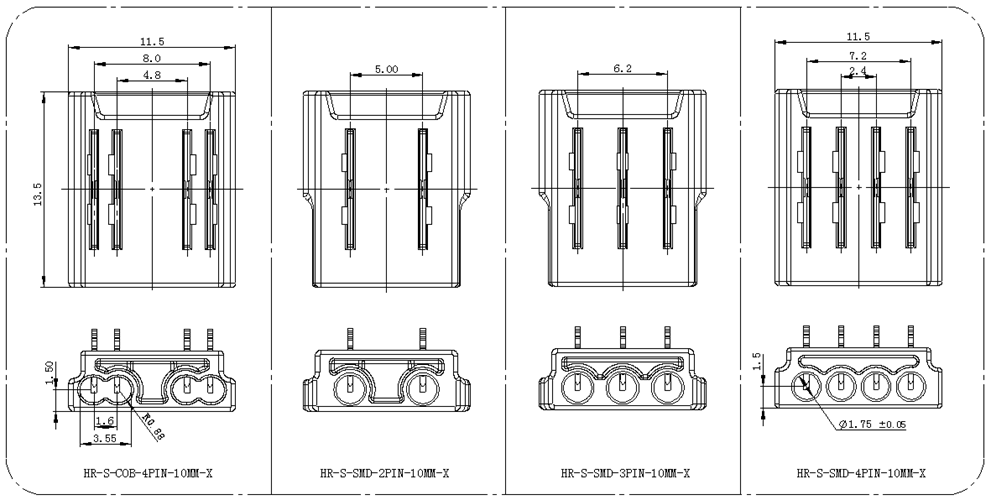

6. Product Size
COB 5mm Strip to Wires 2PIN（HR-S-SC-2PIN-5MM-D）
8mm Strip to Wires 2PIN（HR-S-SC-2PIN-8MM-D）
10mm Series: Strip to Wires
COB/SMD-2PIN：HR-S-SC-2PIN-10MM-D
SMD 12mm Strip to Wires
SMD-5PIN：HR-S-SMD-5PIN-12MM-D
SMD-6PIN：HR-S-SMD-6PIN-12MM-D
Note: The marked view is the 5PIN benchmark, and the 6PIN is the same except for the number of PINs;
Remark:
- The marked view is the 5PIN benchmark, and the 6PIN is the same except for the number of PINs;
- Each product has 1 shell with 2 transparent plastic cores, according to the SMD-5PIN example, the 6PIN products are the same.
