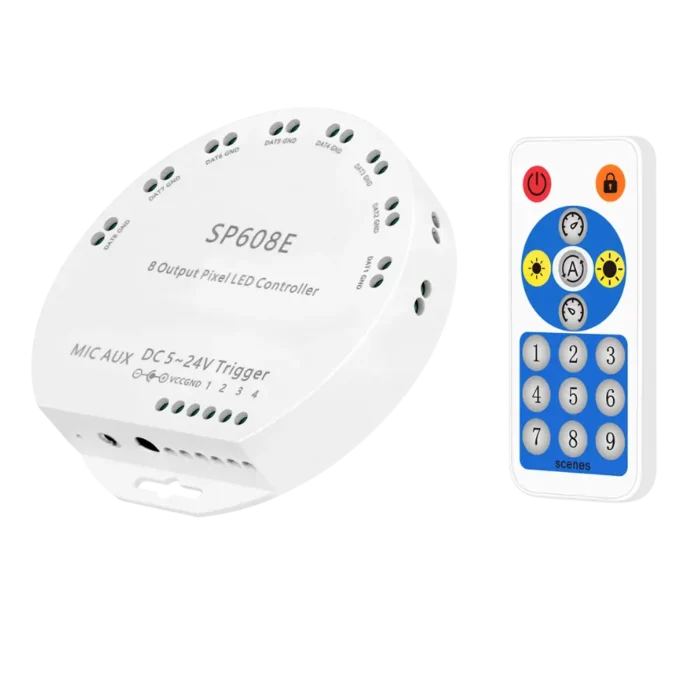

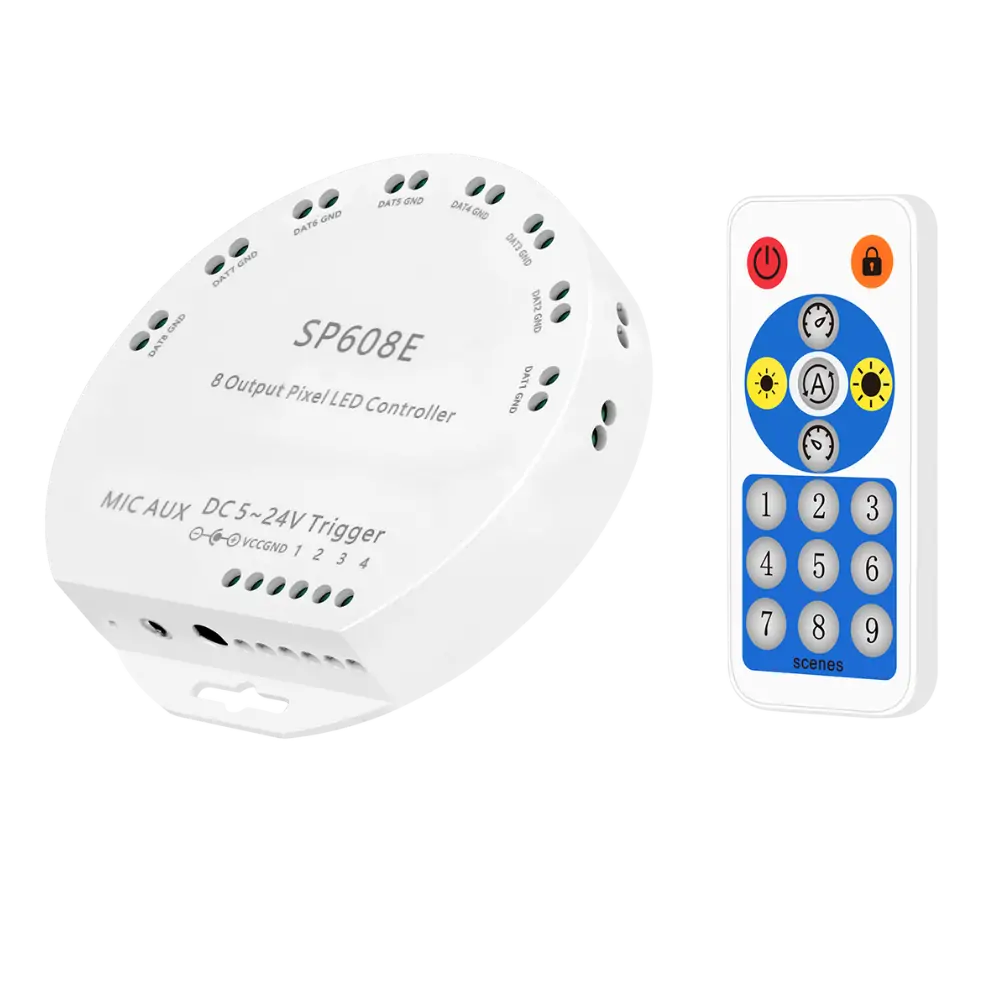

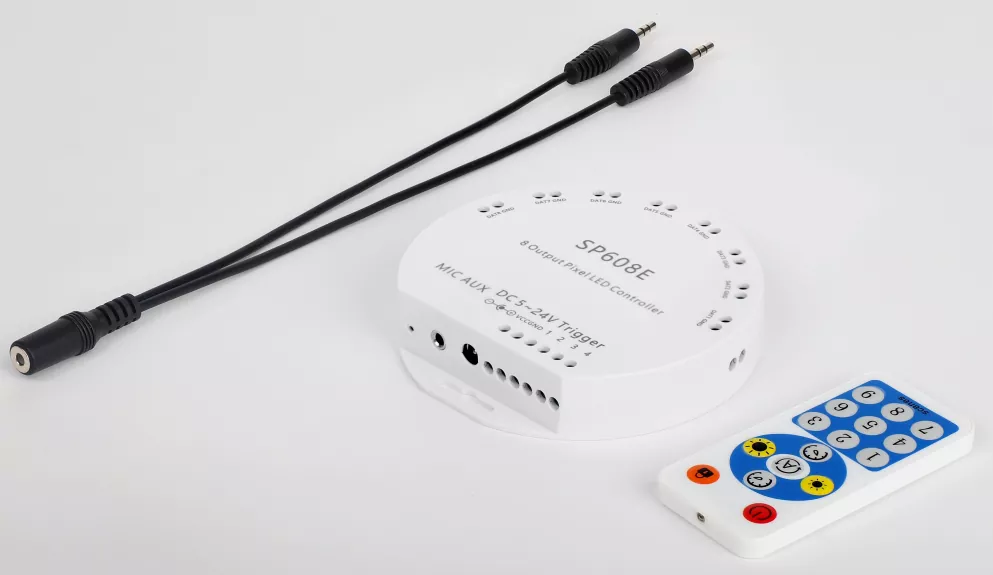

App Controlled 8 Output Music Pixel LED Controller
Description
App Controlled 8 Output Music Pixel LED Controller Features:
1. Supports both mobile APP and RF remote control;
2. App Controlled 8 Output Music Pixel LED Controller Support the output of 8 different lighting effects, suitable for a variety of occasions
to meet the different needs of customers;
3. Supports common single-wire LED driver ICs in the market ;
4. Build in music and non-music effects, multi-parameter adjustable;
5. Built in grouping control function, supporting any combination control of 8 channels;
6. Built in trigger function, supporting the customization of trigger effect parameters;
7. DC5V~24V wide range working voltage, preventing reverse connection of power supply;
8. With Power down save setting parameter function.
App Controlled 8 Output Music Pixel LED Controller App Functions:
•Open the app and click the button in the top right corner of the home page to add a device, then click the device to enter the control page.
•User can rename the controller by clicking on button in the upper right corner.
•App Controlled 8 Output Music Pixel LED Controller SP608E can output 8 way different signals, You can click channel 1~ channel 8 to enter the corresponding page for individual control, or click all channels for unified control.
•After adjusting the effect of each channel, click button in the upper right corner to save the current lighting effect settings to the scenes, SP608E supports a total of 9 scenes, users can call these 9 scenes through the scene page of the mobile app or use the RF remote control.
• App Controlled 8 Output Music Pixel LED Controller Users can set up to five timing events by clicking on button in the upper right corner, please note that all timing events will be deleted when the controller is powered down.
•On the effects page, there are a variety of music and non-music effects, and users can set the speed, brightness, effect length and color for specific effects.
•On any single-channel page, click the upper right corner button to verify the color and copy the channel, and copy the effect of the current channel to any other channel;
•On the trigger page, there are four triggers, and each trigger has preset effects and dynamic effects, Click the button of the trigger to switch between preset effect and custom effect,You can click any of the trigger area to enter the dynamic effect selection interface. Click the upper right corner button to confirm the selected effect, and the upper left corner button to cancel. Long press the trigger area to change the trigger name, trigger lasting time, trigger channel.
•On the grouping page, click the button in the lower right corner to add groups, select the channel associated with groups, and click OK to set the names of groups,The group page shows the added groups, and clicking in controls the effect mode of the channel associated with the group.
App Controlled 8 Output Music Pixel LED Controller App Operations:
•Open the app and click the button in the top right corner of the home page to add a device, then click the device to enter the control page.
•User can rename the controller by clicking on button in the upper right corner.
•App Controlled 8 Output Music Pixel LED Controller SP602E can output 4 way different signals, You can click channel 1~ channel 4 to enter the corresponding page for individual control, or click all channels for unified control.
•After adjusting the effect of each channel, click button in the upper right corner to save the current lighting effect settings to the scenes, SP602E supports a total of 9 scenes, users can call these 9 scenes through the scene page of the mobile app or use the RF remote control.
•Users can set up to five timing events by clicking on button in the upper right corner, please note that all timing events will be deleted when the controller is powered down.
•On the effects page, there are a variety of music and non-music effects, and users can set the speed, brightness, effect length and color for specific effects.
•On any single-channel page, click the upper right corner button to verify the color and copy the channel, and copy the effect of the current channel to any
other channel;
•On the trigger page, there are four triggers, and each trigger has preset effects and dynamic effects, Click the button of the trigger to switch between preset effect and custom effect, You can click any of the trigger area to enter the dynamic effect selection interface. Click the upper right corner button to confirm the selected effect, and the upper left corner button to cancel. Long press the trigger area to change the trigger name, trigger lasting time, trigger channel.
•On the grouping page, click the button in the lower right corner to add groups, select the channel associated with groups, and click OK to set the names of groups. The group page shows the added groups, and clicking in controls the effect mode of the channel associated with the group.
App Controlled 8 Output Music Pixel LED Controller RF Remote Functions:
| ON/OFF | Lock/Unlock | Speed + | Speed - | Brightness+ | Brightness- | Scene Auto | 9 Scenes |
|---|---|---|---|---|---|---|---|
 |  |  |  |  |  |  | 1-9 |

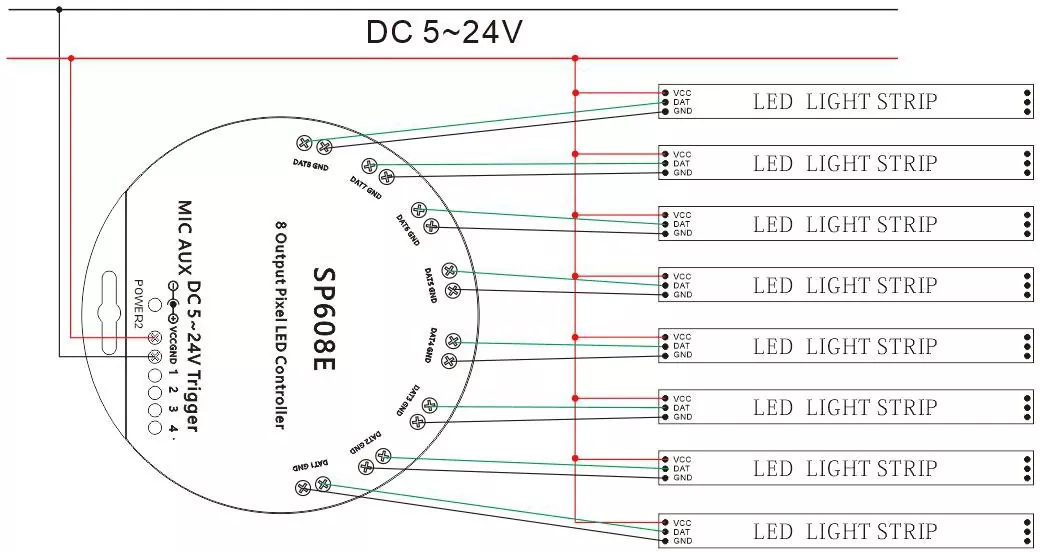

App Controlled 8 Output Music Pixel LED Controller Wire Connection：
LED Controller List
| No. | Model | Description | Image | Voltage | APP | Music | Remote | Button | DAT/CLK/PWM | Output | IC Type | Maxium Pixel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SP002E | Micro Simple 3 Buttons LED Controller |  | DC5V-24V | Non | Non | Non | 3 | DATA GND | 1 Set TTL | One Wire IC | 600 |
| 2 | SP103E | 14key Mini-RF Remote |  | DC5V/DC12V | Non | Non | 14key RF | Non | DATA GND | 1 Set TTL | One Wire IC | 2048 |
| 3 | SP104E | 17key Mini-RF Remote |  | DC5V-24V | Non | Non | 17key RF | Non | DATA GND | 1 Set TTL | One Wire IC | 2048 |
| 4 | SP105E | BT App Controlled Pixel LED Controller |  | DC5V-24V |  | Non | Non | Non | CLK DATA GND | 1 Set TTL | One/Two Wire IC | 2048 |
| 5 | SP106E | RF Remote Music LED Controller |  | DC5V-12V | Non | Onboard Mic | 14key RF | Non | DATA GND | 1 Set TTL | One Wire IC | 600 |
| 6 | SP107E | BT App Controlled Music Pixel LED Controller |  | DC5V-24V |  | Onboard Mic/AUX | Non | Non | CLK DATA GND | 1 Set TTL | One/Two Wire IC | 960 |
| 7 | SP108E | WiFi App Controlled Pixel LED Controller |  | DC5V-24V | | Non | Non | 1 | CLK DATA GND | 1 Set TTL | One/Two Wire IC | 2048 |
| 8 | SP110E | BT App Controlled Pixel LED Controller |  | DC5V-24V |  | Non | Non | Non | CLK DATA GND | 1 Set TTL | One/Two Wire IC | 1024 |
| 9 | SP201E | DMX512 Decoder |  | DC5V-24V | Non | Non | Non | 3 | CLK DATA GND + 5*PWM | 1 Set TTL + 5*PWM | One/Two Wire IC + PWM | 2000 Channels |
| 10 | SP511E | IoT WiFi App Controlled Pixel LED Controller |  | DC5V-24V |  | Onboard Mic | 38key IF | 3 | DATA GND | 1 Set TTL | One Wire IC | 900 |
| 11 | SP513E | IoT WiFi App Controlled RGB LED Controller |  | DC5V-24V | | Onboard Mic | 38key IF | 3 | RGB | 3*PWM | PWM | / |
| 12 | SP514E | IoT WiFi App Controlled RGBW LED Controller | | DC5V-24V | | Onboard Mic | 38key IF | 3 | RGBW | 4*PWM | PWM | / |
| 13 | SP601E | BT App Controlled 2 Output Music Pixel LED Controller |  | DC5V-24V |  | Onboard Mic | 16key RF | 3 | 2*DATA GND | 2 Set TTL | One Wire IC | 600*2 |
| 14 | SP602E | BT App Controlled 4 Output Music Pixel LED Controller |  | DC5V-24V | | Onboard Mic/AUX | 16key RF | 3 | 4*DATA GND | 4 Set TTL | One Wire IC | 600*4 |
| 15 | SP608E | BT App Controlled 8 Output Music Pixel LED Controller |  | DC5V-24V | | Onboard Mic/AUX | 16key RF | Non | 8*DATA GND | 8 Set TTL | One Wire IC | 600*8 |
| 16 | SP611E | BT App Controlled Music Pixel LED Controller |  | DC5V-24V | | Onboard&Phone Mic /Streaming | 38key IF | 3 | DATA GND | 1 Set TTL | One Wire IC | 600 |
| 17 | SP613E | BT App Controlled Music RGB LED Controller |  | DC5V-24V | | Onboard&Phone Mic /Streaming | 38key IF | 3 | RGB | 3*PWM | PWM | / |
| 18 | SP614E | BT App Controlled Music RGBW LED Controller | | DC5V-24V | | Onboard&Phone Mic /Streaming | 38key IF | 3 | RGBW | 4*PWM | PWM | / |
| 19 | SP616E | BT App&AmbiBox Controlled Music Pixel LED Controller |  | DC5V | | Onboard&Phone Mic /Streaming | Non | 3 | DATA GND | 1 Set TTL | One Wire IC | 600 |
| 20 | SP617E | BT App&AmbiBox Controlled Music Pixel RGBW LED Controller |  | DC5V-24V | | Onboard&Phone Mic /Streaming | 38key IF | 3 | DATA GND | 1 Set TTL | One Wire IC | 600 |
| 21 | SP621E | Mini BT App Controlled Pixel LED Controller |  | DC5V-24V | | Phone Mic /Streaming | Non | Non | DATA GND | 1 Set TTL | One Wire IC | 600 |
| 22 | SP623E | Mini BT App Controlled Music RGB LED Controller |  | DC5V-24V | | Phone Mic /Streaming | Non | Non | RGB | 3*PWM | PWM | / |
| 23 | SP624E | Mini BT App Controlled Music RGBW LED Controller | | DC5V-24V | | Phone Mic /Streaming | Non | Non | RGBW | 4*PWM | PWM | / |
| 24 | SP801E | WiFi ArtNet LED Controller |  | DC5V-24V | | Non | Non | 1 | CLK DATA GND | 4 Set TTL | One Wire IC | 1024*4 |
| 25 | SP901E | TTL Signal Amplifier |  | DC5V-24V | Non | Non | Non | Non | CLK DATA GND | 4 Set TTL | Depends on input | Depends on input |
