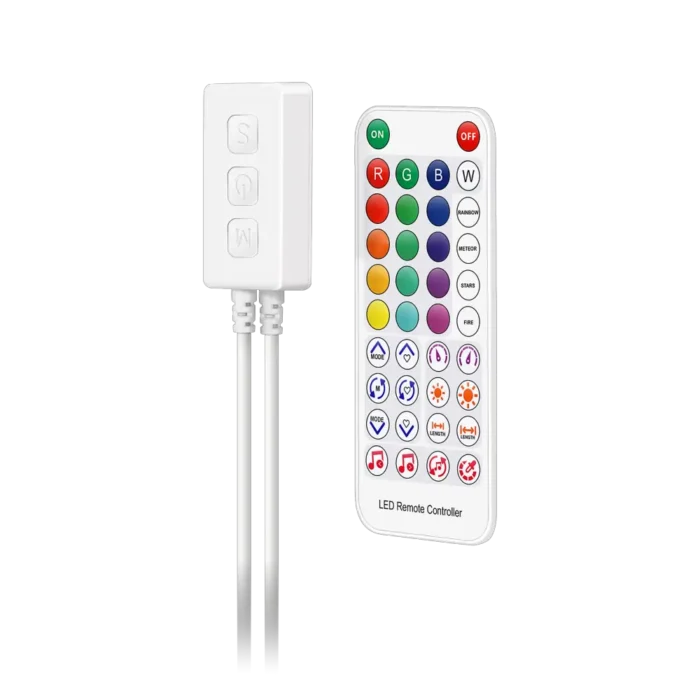

App Controlled Bluetooth Music Pixel LED Controller
Description
App Controlled Bluetooth Music Pixel LED Controller Features:
1. Supports both APP control and IR remote control;
2. App Controlled Bluetooth Music Pixel LED Controller Support automatic device connection and automatic re-connection when the APP turns on;
3. Support multiple devices grouping control;
4. Multiple sound collection methods: phone mic, player streaming, on-board mic;
5. Support modifying the device name, calibrate the RGB channel sequence, and timer function;
6. Compatible with the common single-line LED driver IC on the market, can drive up to 600 pixels;
7. Built-in 142 dynamic effects, effect length adjustable, with favour effects collecting function;
8. Built-in 18 music effects, effect length adjustable, sensitivity adjustable;
9. DC5~24V wide voltage input, the power supply has anti-reverse connection function;
10. Automatic saving function for setting parameters.
App Functions:
App Controlled Bluetooth Music Pixel LED Controller SP611E supports being controlled by APP, botth IOS and Android version are available
Apple devices are required IOS 10.0 or later, Android devices are required Android 4.4 or later
You can scan the QR code to download and install the App.
App Controlled Bluetooth Music Pixel LED Controller App Operations:
• Open the App and click the on the upper right corner of the homepage, add devices by scanning for devices, or creating a group of multiple added devices;
Click on an individual device in the device list to access the control page to control the device individually;
Click on a group in the group list to enter the control page to control all devices in the group at the same time;
• User can modify the device name and calibrate the RGB channel sequence by clicking on the upper right corner of the operation page.
• User can set up to five timing events by clicking on in the upper right corner, please note that all set timing events will be deleted when the controller is
powered off.
• In the effects page, there are a variety of music effects and non-music effects, users can set speed, brightness color and effect length for a specific effect.
Note: User can find more detailed information and help by clicking the button in the top right corner.
App Controlled Bluetooth Music Pixel LED Controller IR Remote Functions:
 |  | W/R/G/B/C/P... |  |  |  |  |  |  |  | |
|---|---|---|---|---|---|---|---|---|---|---|
| ON | OFF | 16 Static colors | Rianbow | Meteor | Stars | Fire | Mode + - | Favorite Mode + | Favorite Mode - | |
 |  |  |  |  |  |  |  |  | ||
| Music Mode + - | Speed - | Speed + | Brightness- | Brightness+ | Length + | Length - | Change Color | Music Auto | ||
Buttons:
On/Off button : Turning on or off the LED light;
Mode button M : Switching the effects;
Speed button S : Adjusting the speed of the non-music effects.
Technical Parameters：
Working temperature: -20℃~60℃
ControllerDimensions: 60mm*30mm*14mm(not including the wires)
Remote control Dimensions: 125mm*56mm*7.5mm；
Working voltage: DC5V~24V
Operating current: 9mA~24mA

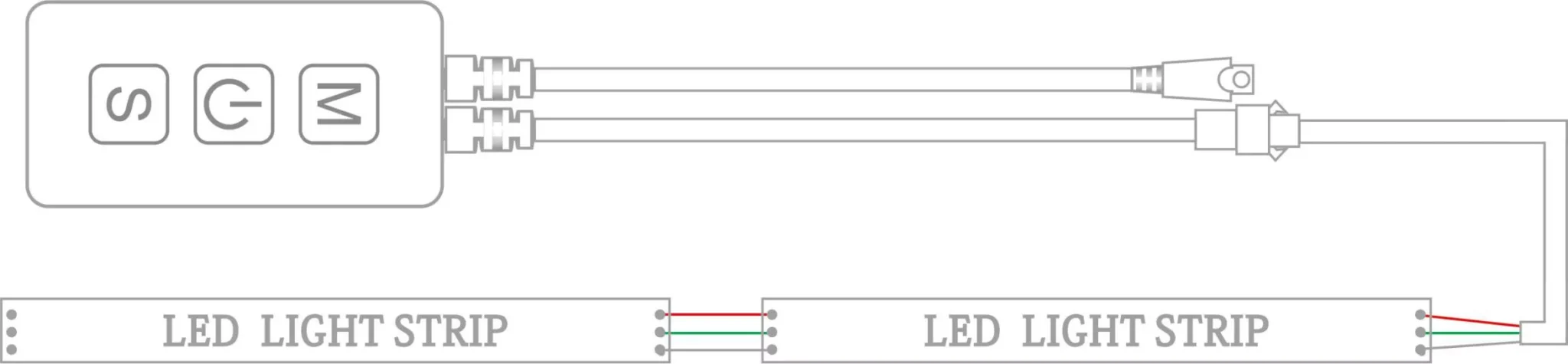

Wire Connection:
LED Controller List
| No. | Model | Description | Image | Voltage | APP | Music | Remote | Button | DAT/CLK/PWM | Output | IC Type | Maxium Pixel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SP002E | Micro Simple 3 Buttons LED Controller |  | DC5V-24V | Non | Non | Non | 3 | DATA GND | 1 Set TTL | One Wire IC | 600 |
| 2 | SP103E | 14key Mini-RF Remote |  | DC5V/DC12V | Non | Non | 14key RF | Non | DATA GND | 1 Set TTL | One Wire IC | 2048 |
| 3 | SP104E | 17key Mini-RF Remote |  | DC5V-24V | Non | Non | 17key RF | Non | DATA GND | 1 Set TTL | One Wire IC | 2048 |
| 4 | SP105E | BT App Controlled Pixel LED Controller |  | DC5V-24V |  | Non | Non | Non | CLK DATA GND | 1 Set TTL | One/Two Wire IC | 2048 |
| 5 | SP106E | RF Remote Music LED Controller |  | DC5V-12V | Non | Onboard Mic | 14key RF | Non | DATA GND | 1 Set TTL | One Wire IC | 600 |
| 6 | SP107E | BT App Controlled Music Pixel LED Controller |  | DC5V-24V |  | Onboard Mic/AUX | Non | Non | CLK DATA GND | 1 Set TTL | One/Two Wire IC | 960 |
| 7 | SP108E | WiFi App Controlled Pixel LED Controller |  | DC5V-24V | | Non | Non | 1 | CLK DATA GND | 1 Set TTL | One/Two Wire IC | 2048 |
| 8 | SP110E | BT App Controlled Pixel LED Controller |  | DC5V-24V |  | Non | Non | Non | CLK DATA GND | 1 Set TTL | One/Two Wire IC | 1024 |
| 9 | SP201E | DMX512 Decoder |  | DC5V-24V | Non | Non | Non | 3 | CLK DATA GND + 5*PWM | 1 Set TTL + 5*PWM | One/Two Wire IC + PWM | 2000 Channels |
| 10 | SP511E | IoT WiFi App Controlled Pixel LED Controller |  | DC5V-24V |  | Onboard Mic | 38key IF | 3 | DATA GND | 1 Set TTL | One Wire IC | 900 |
| 11 | SP513E | IoT WiFi App Controlled RGB LED Controller |  | DC5V-24V | | Onboard Mic | 38key IF | 3 | RGB | 3*PWM | PWM | / |
| 12 | SP514E | IoT WiFi App Controlled RGBW LED Controller | | DC5V-24V | | Onboard Mic | 38key IF | 3 | RGBW | 4*PWM | PWM | / |
| 13 | SP601E | BT App Controlled 2 Output Music Pixel LED Controller |  | DC5V-24V |  | Onboard Mic | 16key RF | 3 | 2*DATA GND | 2 Set TTL | One Wire IC | 600*2 |
| 14 | SP602E | BT App Controlled 4 Output Music Pixel LED Controller |  | DC5V-24V | | Onboard Mic/AUX | 16key RF | 3 | 4*DATA GND | 4 Set TTL | One Wire IC | 600*4 |
| 15 | SP608E | BT App Controlled 8 Output Music Pixel LED Controller |  | DC5V-24V | | Onboard Mic/AUX | 16key RF | Non | 8*DATA GND | 8 Set TTL | One Wire IC | 600*8 |
| 16 | SP611E | BT App Controlled Music Pixel LED Controller |  | DC5V-24V | | Onboard&Phone Mic /Streaming | 38key IF | 3 | DATA GND | 1 Set TTL | One Wire IC | 600 |
| 17 | SP613E | BT App Controlled Music RGB LED Controller |  | DC5V-24V | | Onboard&Phone Mic /Streaming | 38key IF | 3 | RGB | 3*PWM | PWM | / |
| 18 | SP614E | BT App Controlled Music RGBW LED Controller | | DC5V-24V | | Onboard&Phone Mic /Streaming | 38key IF | 3 | RGBW | 4*PWM | PWM | / |
| 19 | SP616E | BT App&AmbiBox Controlled Music Pixel LED Controller |  | DC5V | | Onboard&Phone Mic /Streaming | Non | 3 | DATA GND | 1 Set TTL | One Wire IC | 600 |
| 20 | SP617E | BT App&AmbiBox Controlled Music Pixel RGBW LED Controller |  | DC5V-24V | | Onboard&Phone Mic /Streaming | 38key IF | 3 | DATA GND | 1 Set TTL | One Wire IC | 600 |
| 21 | SP621E | Mini BT App Controlled Pixel LED Controller |  | DC5V-24V | | Phone Mic /Streaming | Non | Non | DATA GND | 1 Set TTL | One Wire IC | 600 |
| 22 | SP623E | Mini BT App Controlled Music RGB LED Controller |  | DC5V-24V | | Phone Mic /Streaming | Non | Non | RGB | 3*PWM | PWM | / |
| 23 | SP624E | Mini BT App Controlled Music RGBW LED Controller | | DC5V-24V | | Phone Mic /Streaming | Non | Non | RGBW | 4*PWM | PWM | / |
| 24 | SP801E | WiFi ArtNet LED Controller |  | DC5V-24V | | Non | Non | 1 | CLK DATA GND | 4 Set TTL | One Wire IC | 1024*4 |
| 25 | SP901E | TTL Signal Amplifier |  | DC5V-24V | Non | Non | Non | Non | CLK DATA GND | 4 Set TTL | Depends on input | Depends on input |
