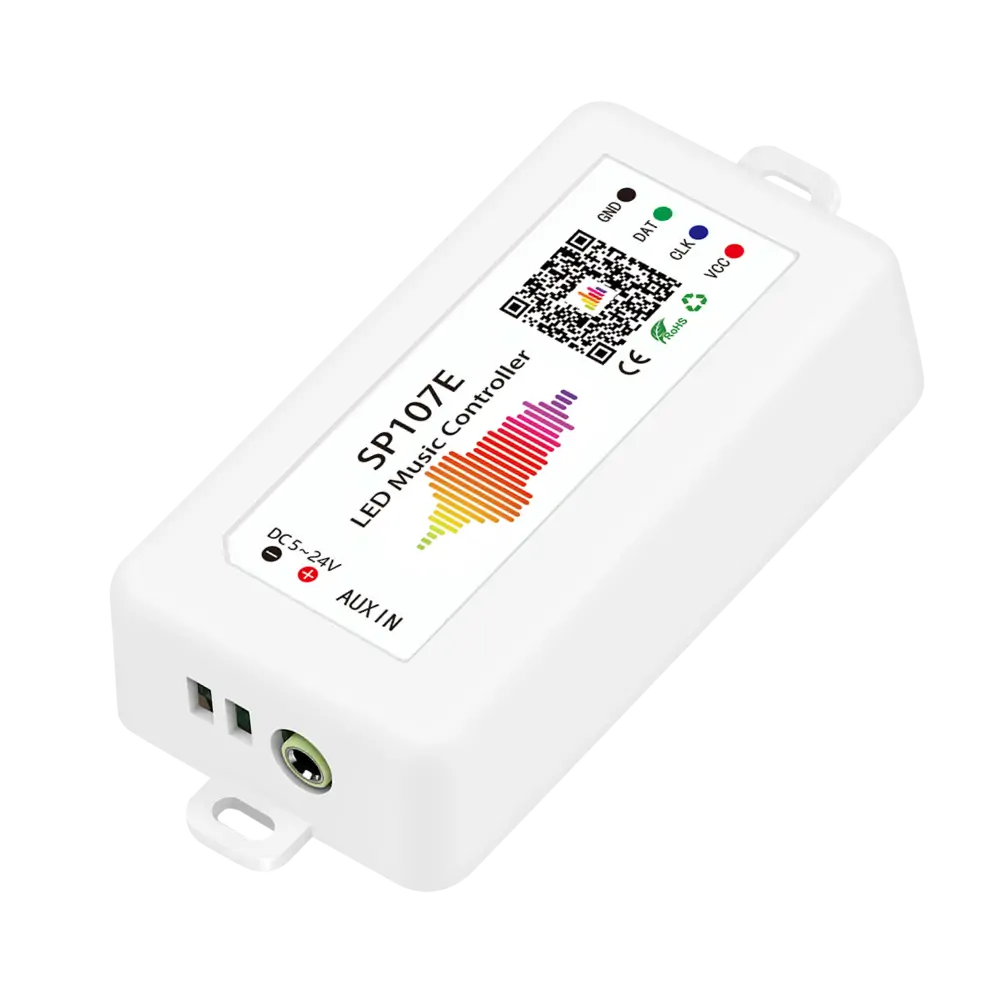

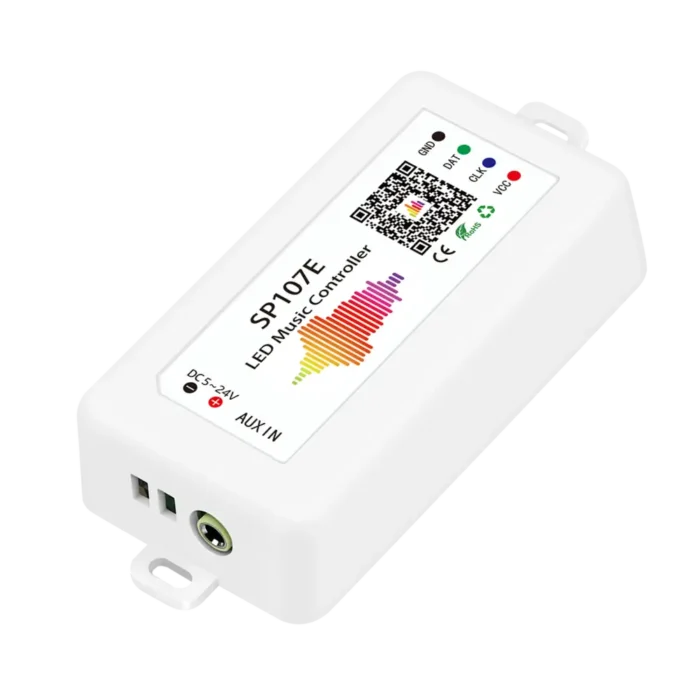

Bluetooth Addressable Music LED Controller

App Controlled Music Pixel LED Controller Features:

1. Long distance APP remote control via Bluetooth;
2. App Controlled Music Pixel LED Controller Support almost every kind of one-wire or two-wires LED driver IC ;
3. Support setting pixel number and segment number, support up to 960 pixels;
4. With 18 kinds of LED strip music effects, 30 kinds of LED matrix music effects
and 180 kinds of non-music effects;
5. DC5V~24V wide range working voltage, reverse power supply input protection;
6. User setting saving;

App Controlled Music Pixel LED Controller Download and install the APP:

Both IOS version and Android OS version are available. (hardware should support Bluetooth)
•Requires IOS version 10.0 or later;
•Requires Android OS version 4.4 or later;
•Search “LED Chord” in App Store or Google Play or scan this QR code to download and install the APP:

App Controlled Music Pixel LED Controller Instructions

APP Operating’s:

1.Make sure you have turn on Bluetooth on your phone;
2.Open the APP, drag to refresh the device list, select device name “SP107E” to connect the controller, once connected you will able to rename your
controller;
3.Select RGB order and IC type;
4.Adjust pixel number;
5.Press ENTER.

Audio Input:

There are two ways to input the audio signal on SP107E, AUX IN and Build-IN microphone;
•AUX IN: Plug the supplied audio split cable into the “AUX IN” jack, connect the audio output source(MP3,Phone or tablet…)and the speaker(or
headset), controller will automatically switch into AUX input mode;
•MIC: Disconnect the audio cable, controller will automatically switch into microphone input mode.

App Controlled Music Pixel LED Controller Specifications:

Working temperature : -20℃~60℃;
Working Voltage : DC5V~24V;
Working Current : 18mA~45mA;
Remote distance : 20 Meters;
Product size : 85mm*45mm*22mm;
Product weight : 40g ;
Certificates : CE, RoHS;

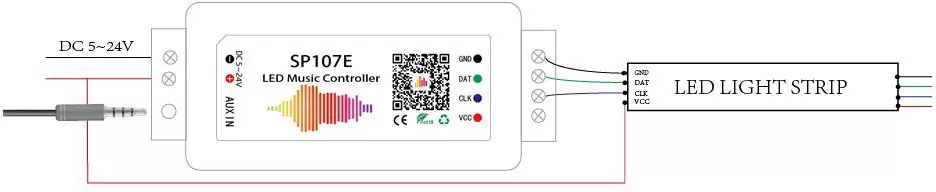

App Controlled Music Pixel LED Controller Wire Connection：
