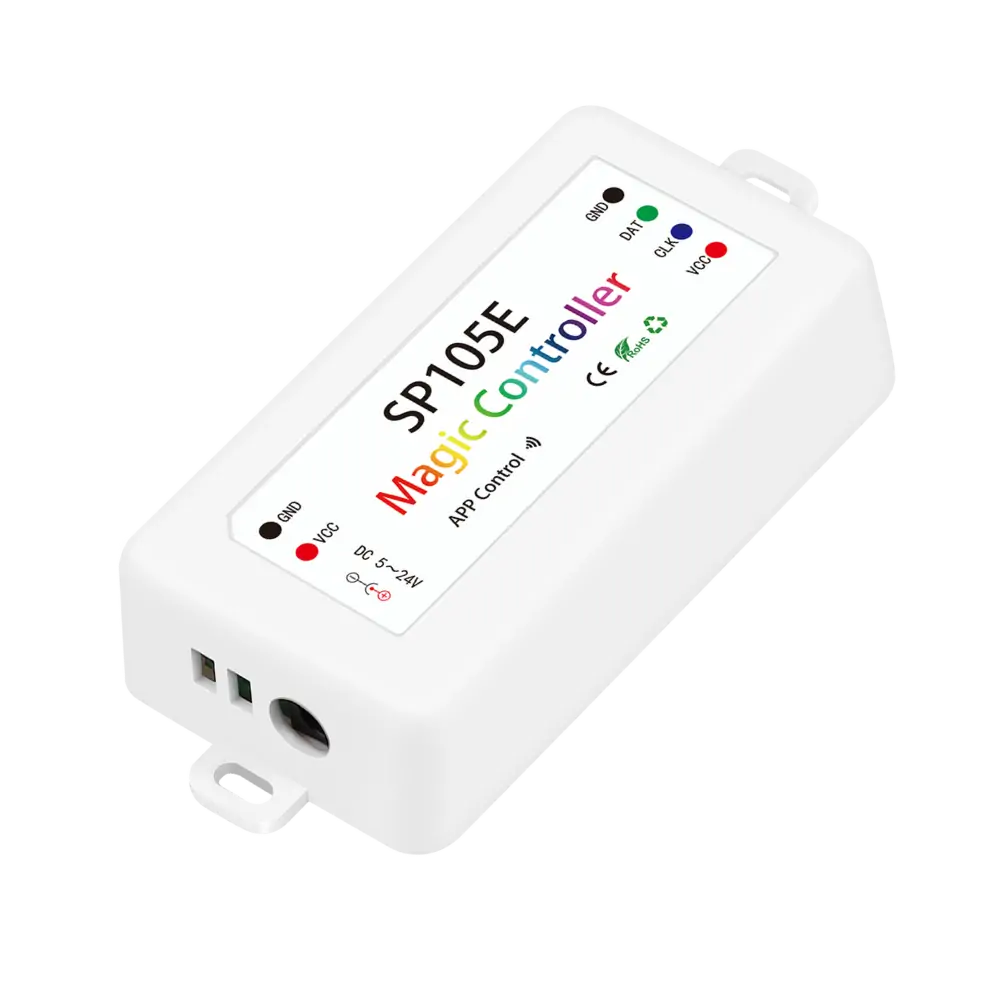

Bluetooth Magic LED Controller SP105E

App Controlled Pixel LED Controller Features

1.App Control via Bluetooth 4.0,long Control distance, convenient to use;
2. App Controlled Pixel LED Controller Support almost every kind of one-wire or two-wire LED driver IC ;
3. Brightness adjustable, With 200 kinds of patterns, which are vivid and beautiful;
4. Support setting total pixel number, able to control up to 2048 pixels;
5. DC5V~24V wide working voltage, preventing reverse connection of power supply;
6. User setting saving;

App Controlled Pixel LED Controller App:

The specialized App is available on both IOS and Android OS. (hardware should support Bluetooth 4.0)
•Apple Device:iPhone4S | iPhone5/5S/5C | iPhone6S/6s Plus | iPhone6 / 6 Plus, supported IOS 8.0 version or later;
•Android OS version should be Android 4.4 or later.
•Search ”Magic-LED” or scan the QR code below to download and install the App:

LED Controller Specifications:

Working temperature : -20℃~60℃;

Working Voltage : DC5V~24V;

Working Current : 28mA~40mA;

Remote distance : 20 Meters;

Product size : 85mm*45mm*22mm;

Product weight : 40g ;

Certificates : CE, RoHS;

LED Controller Connection Drawing：
