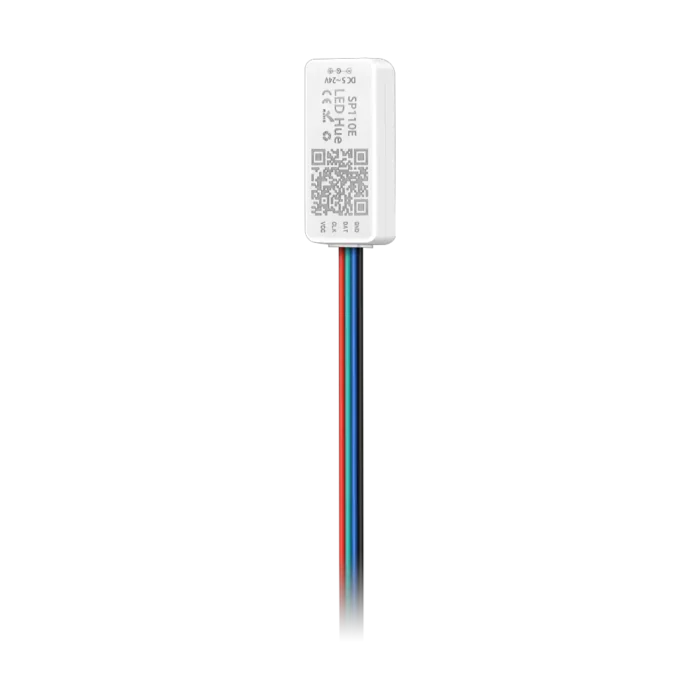

Bluetooth Mini addressable LED Controller SP110E

App Controlled Pixel LED Controller

Features:

1. App controlled led controller Control via Bluetooth 4.0, long Control distance,convenient to use;
2. Support almost every kind of one-wire or two-wire LED driver IC ;
3. Brightness adjustable,With 120 kinds of patterns,which are vivid and beautiful;
4. Support setting total pixel number,able to control up to 1024 pixels;
5. DC5V~12V wide working voltage,preventing reverse connection of power supply;
6. User setting saving;

App:

Both IOS version and Android OS version are available.
•Requires IOS version 10.0 or later;
•Requires Android OS version 4.4 or later;
•Search”LEDHue”in App Store or Google pay or scan this QR code to download and install the App:

Specifications:

Working temperature : -20℃~60℃;
Working Voltage : DC5V~12V;
Working Current : 20mA~40mA;
Remote distance : 20 Meters;
Product size : 50mm*20mm*10mm;
Product weight : 20g ;
Certificates : CE, RoHS;

Wire Connection：
