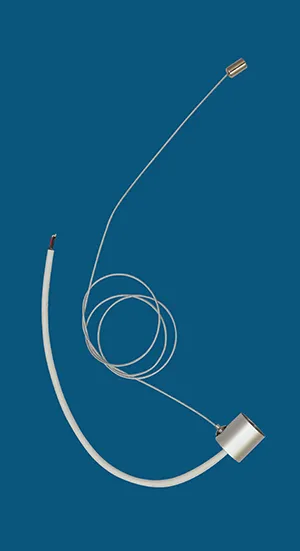

A05D25 Round silicone tube installation accessories – Hanging wire horizontal hanging (without PC tube)

SKU: A05D25

Original price was: $120.00.Current price is: $70.00.

Per Box

YIFORD A05D25 is a professional lighting installation accessory designed for 25mm diameter round silicone tubes, Professionally matched silicone flexible light strips without PC tube cover can better show the unique beauty of silicone led channel system, suitable for various commercial, public buildings and landscape lighting projects.

Add to wishlist
Compare
  • Prices are per box.
  • Prices will appear after all available options have been selected.
  • Shipping cost will appear after filling in the recipient’s company address and zip code.
Description
YIFORD A05D25 is a professional lighting installation accessory designed for 25mm diameter round silicone tubes, specially tailored for lighting companies, lighting designers and building contractors. The product adopts a simple and modern design, breaking through the limitations of traditional lighting accessories, and has strong adaptability and reliability. With this innovative installation accessory, the installation of lamps is easier and faster, while providing stronger aesthetics and stability.

Professionally matched silicone flexible light strips without PC tube cover can better show the unique beauty of silicone tubes, suitable for various commercial, public buildings and landscape lighting projects.

Technical Specifications

Model:  A05D25
Applicable tube diameter 25mm (without PC tube)
Telescopic range: 200mm-400mm/300-600mm/500-1000mm/600-1200mm
Maximum load: 3kg
Material: High-strength aluminum alloy, stainless steel
Surface treatment: Anodizing/electrophoretic spraying

Accessories Details

  1. Screw sleeve
  2. Wia upper fixed pillar
  3. Screw （M4x25）
  4. Wia bottom fixed pillar （Can through wire）
  5. Wia sling
  6. Power cord
  7. Tail cover fixing （200-400mm）
  8. Screw （M2.6x16）
  9. Tail cover （With hole for power cord，not match PC cover）
  10. Insulation gasket

Product advantages and innovations

A05D25 not only meets the basic functions of silicone tube installation, but also incorporates many innovative elements, providing more competitive advantages than traditional installation accessories.

Base​

Installation method: The base is directly driven into the wall through the expansion screw, and the installation process is simple and quick. Whether it is a cement wall, a brick wall or a wooden wall, it can ensure a firm fixation and is suitable for different building structures.

Lifting rope

High quality suspension ropes are made of rust proof metal chains to avoid the risk of lighting fixtures falling. The hanging rope can freely lift and lower the lighting fixtures, adapting to different scene requirements

Connection cover

360° rotation function:

The connection cover supports 360° rotation, and the shape of the light strip can be adjusted as needed, providing more flexibility for lighting design. The direction and angle of the light can be precisely controlled to ensure that the overall shape is full of artistic sense and can achieve lighting effects.

Product composition and function analysis

The A05D25 accessories include three main parts: base, telescopic rod and connection cover. Each part has been carefully designed to provide a more efficient and convenient installation experience and ensure the stability and flexibility of the light.

install base

Base

Design features: The base is made of high-quality hardware materials to ensure the firmness and durability of the product. The design of the expansion screw enables it to be firmly fixed on the wall, which not only enhances the stability of the installation, but also reduces the risk of damage to the wall.

Lifting rope

The minimum can be shortened to 200mm and the maximum can be extended to 400mm. There are also different lengths to choose from, such as 300-600mm long, 500-1000mm, 600-1200mm, and High quality suspension ropes are made of rust proof metal chains to avoid the risk of lighting fixtures falling. The hanging rope can freely lift and lower the lighting fixtures, adapting to different scene requirements. This flexible telescopic design enables it to adapt to the requirements of different heights and installation methods, providing more creative space for lamp manufacturers and lighting designers.

end cover

Connection cover

Side outlet design: The unique side outlet design of the connection cover can easily suspend the tail end of the silicone light strip, with a beautiful and seamless finish. The screw fixes the silicone tube. This design can not only effectively prevent the silicone tube from sliding, but also make the installation process easier without the need for additional accessories or tools.

Application fields and market demand

The design of A05D25 fully considers the diverse needs of modern lighting installation. This accessory not only meets the basic requirements of lighting manufacturers, lighting design companies and building contractors, but also has great market potential and application prospects.

Lighting manufacturers

For lighting manufacturers, the design of A05D25 can effectively improve the installation convenience and flexibility of their products, thereby increasing the market competitiveness of their products. By providing a series of installation accessories that are easy to operate and adapt to different scenarios, lighting manufacturers can provide customers with more personalized and customized installation solutions.

lighting show

Lighting design companies

When arranging lights, lighting design companies often face different spatial forms and lighting needs. The telescopic rod and rotating connection cover design of A05D25 allow lighting designers to adjust the lighting angle and position more freely, thereby achieving more creative lighting effects.

Building contractors

When building construction, building contractors usually need to consider the convenience and safety of lighting installation. With its simple and efficient installation method, A05D25 can help contractors save a lot of time and energy during the construction process while ensuring the safety and stability of the installation.

ceiling lights

Interior designers and decoration companies

In the process of interior design and decoration, lighting is an important tool to enhance the atmosphere of the space. A05D25 provides designers with more creative possibilities. Whether it is display lighting in commercial space or decorative light strips in home space, A05D25 can provide the best installation solution.

YIFORD A05D25 360-degree silicone tube installation accessories are not only a hardware installation, but also a microcosm of modern lighting solutions. It combines industrial design, precision manufacturing and aesthetic pursuit to provide users with extremely simple and highly functional lighting solutions.
As a professional lighting accessory product, YIFORD A05D25 not only pursues perfection in design and function, but also provides customers with comprehensive guarantees in after-sales service. It can meet the needs of professional engineering installation and is also suitable for DIY installation. It is a high-quality product that truly focuses on user experience.

It should be highlighted that this product adopts a modular design concept, and each component has been precisely processed and strictly tested to ensure the reliability and durability of the product. At the same time, its simple appearance design and flexible adjustment function allow it to perfectly adapt to various decoration styles and application scenarios, and it is an indispensable accessory product in modern lighting systems.

Customization services and customer support
YIFORD provides a wealth of customization services and can provide tailor-made solutions according to the needs of different customers. Whether it is color, size, or surface treatment, customers can choose according to project requirements to ensure that the accessories match the overall design style. Our professional team will provide you with a full range of technical support and after-sales service to ensure that every customer can get the best experience.
