Mini Bluetooth Music Pixel LED Controller

Mini Bluetooth Music Pixel LED Controller Features:

1. Mini Bluetooth Music Pixel LED Controller Support APP control ;
2. Support automatic device connection and automatic re-connection when the APP turns on;
3. Support multiple devices grouping control;
4. Two sound collection methods: phone mic, player streaming;
5. Support modifying the device name, calibrate the RGB channel sequence, and timer function;
6. Compatible with the common single-line LED driver IC on the market, can drive up to 600 pixels;
7. Built-in 142 dynamic effects, effect length adjustable, with favor effects collecting function;
8. Built-in 18 music effects, effect length adjustable, sensitivity adjustable;
9. DC5~24V wide voltage input, the power supply has anti-reverse connection function;
10. Automatic saving function for setting parameters.

App Functions:

SP621E supports being controlled by APP, both IOS and Android version are available
Apple devices are required IOS 10.0 or later, Android devices are required Android 4.4 or later You can scan the QR code to download and install the App.
App Operations:
• Open the App and click the on the upper right corner of the homepage, add devices by scanning for devices, or creating a group of multiple added devices; Click on an individual device in the device list to access the control page to control the device individually;
Click on a group in the group list to enter the control page to control all devices in the group at the same time;
• User can modify the device name and calibrate the RGB channel sequence by clicking on the upper right corner of the operation page.
• User can set up to five timing events by clicking on in the upper right corner, please note that all set timing events will be deleted when the controller is powered off.
• In the effects page, there are a variety of music effects and non-music effects, users can set speed, brightness color and effect length for a specific effect.
Note: User can find more detailed information and help by clicking the button in the top right corner.

App Operations:

• Open the App and click the on the upper right corner of the homepage, add devices by scanning for devices, or creating a group of multiple added devices;
Click on an individual device in the device list to access the control page to control the device individually;
Click on a group in the group list to enter the control page to control all devices in the group at the same time;
• User can modify the device name and calibrate the RGB channel sequence by clicking on the upper right corner of the operation page.
• User can set up to five timing events by clicking on in the upper right corner, please note that all set timing events will be deleted when the controller is
powered off.
• In the effects page, there are a variety of music effects and non-music effects, users can set speed, brightness and color for some specific effects.
Note: User can find more detailed information and help by clicking the button in the top right corner.

Technical Parameters：

Working temperature: -20℃~60℃
Dimensions: 35mm*14mm*7mm(Without wire)
Working voltage: DC5V~24V
Operating current: 13mA~25mA

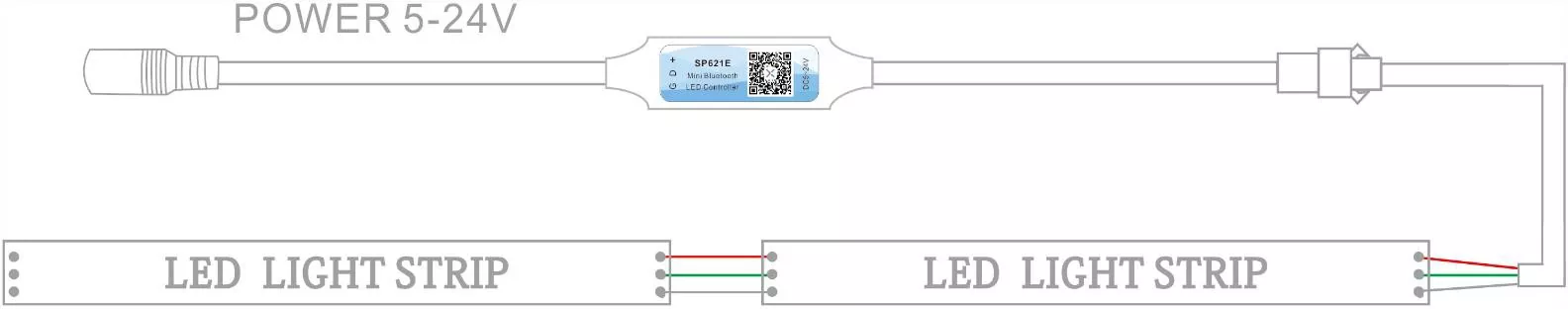

Wire Connection:
