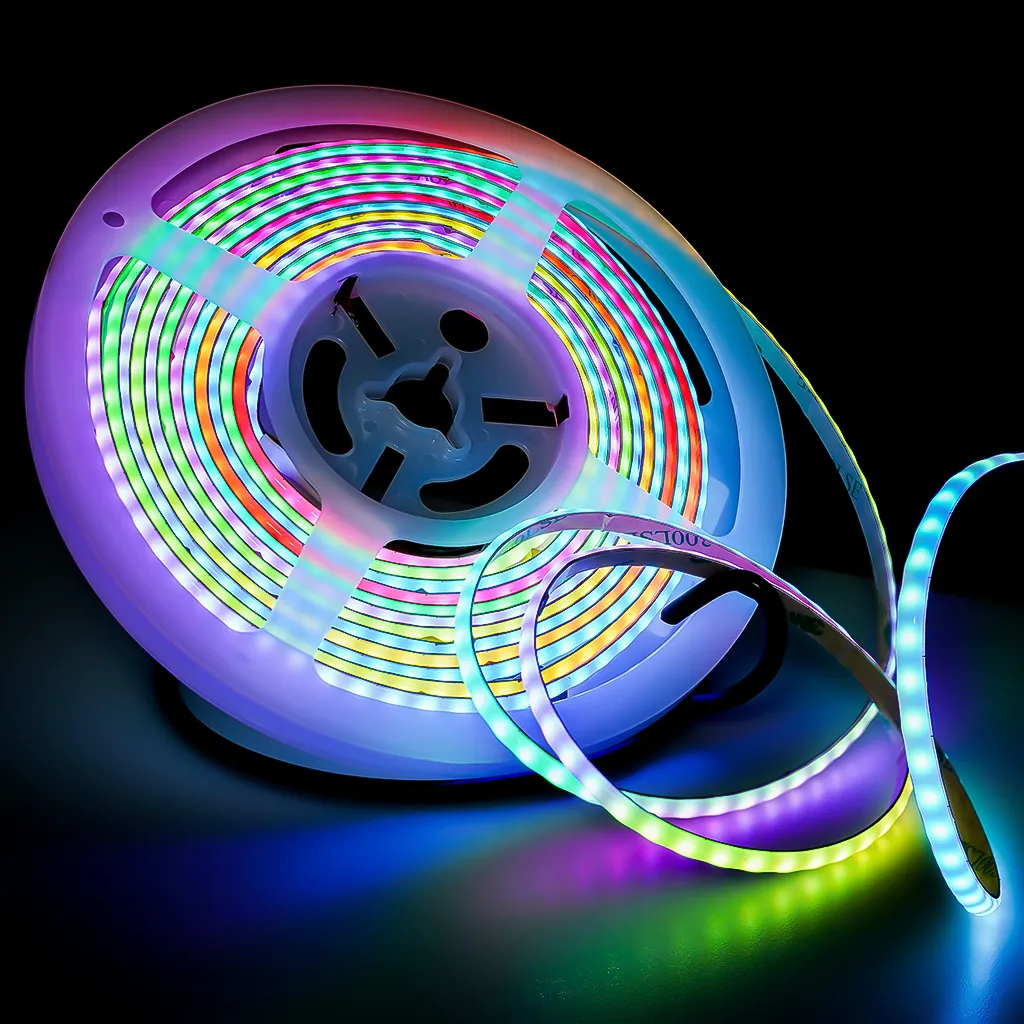

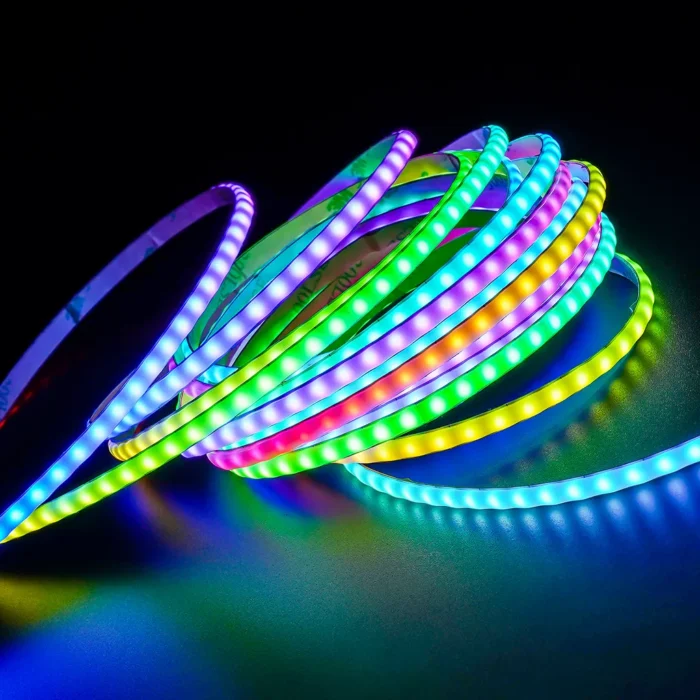

Mini Programmable RGB LED Strip WS2812 12V

SKU: YF-C5MM160IC-12V

Per Box

Illuminate your space with the Mini Programmable RGB LED Strip WS2812 12V, a compact and flexible lighting strip perfect for creative projects, home decor, or special events. Featuring vibrant RGB colors, this LED strip can be easily programmed to create dynamic light patterns and effects using compatible controllers. With its low power consumption and easy installation, the strip can be cut to specific lengths and adhered to various surfaces. Whether you want to set the mood for a party or add some flair to your workspace, this mini LED strip offers endless possibilities for customization and ambiance enhancement.

Add to wishlist
Compare
  • Prices are per box.
  • Prices will appear after all available options have been selected.
  • Shipping cost will appear after filling in the recipient’s company address and zip code.
Description

Yiford’s Mini Programmable RGB LED Strip WS2812 12V is a small-sized programmable RGB LED strip that uses the WS2812 control chip and operates at 12V.

Product Features

This product features 160 ICs and 160 large LED beads per meter, with each LED bead consisting of 3 small LED beads. Your controller must be capable of controlling at least 160 pixels to fully illuminate a 1-meter-long LED strip.

  • 160 ICs per meter indicates the density of control chips, ensuring precise and independent control of each LED bead.
  • 160 large LED beads highlights the high resolution and brightness of the strip.
  • 3 small LED beads per large bead allows for richer color mixing and more vibrant lighting effects.
  • 160 pixels refers to the number of individually addressable points, requiring a controller with sufficient capacity for full functionality.

Programmable Control

Supports various lighting effects through programming, such as gradient, flashing, running lights, etc., suitable for personalized customization scenarios.
Can be controlled via development boards like Arduino, Raspberry Pi, or dedicated controllers.
Utilizes the WS2812 control chip, which offers high integration and supports single-wire communication, simplifying wiring and installation.
Each LED bead can be individually controlled, enabling rich dynamic effects.

Mini Size

Compact size, ideal for space-limited scenarios or projects requiring delicate design, such as model decorations or DIY projects.

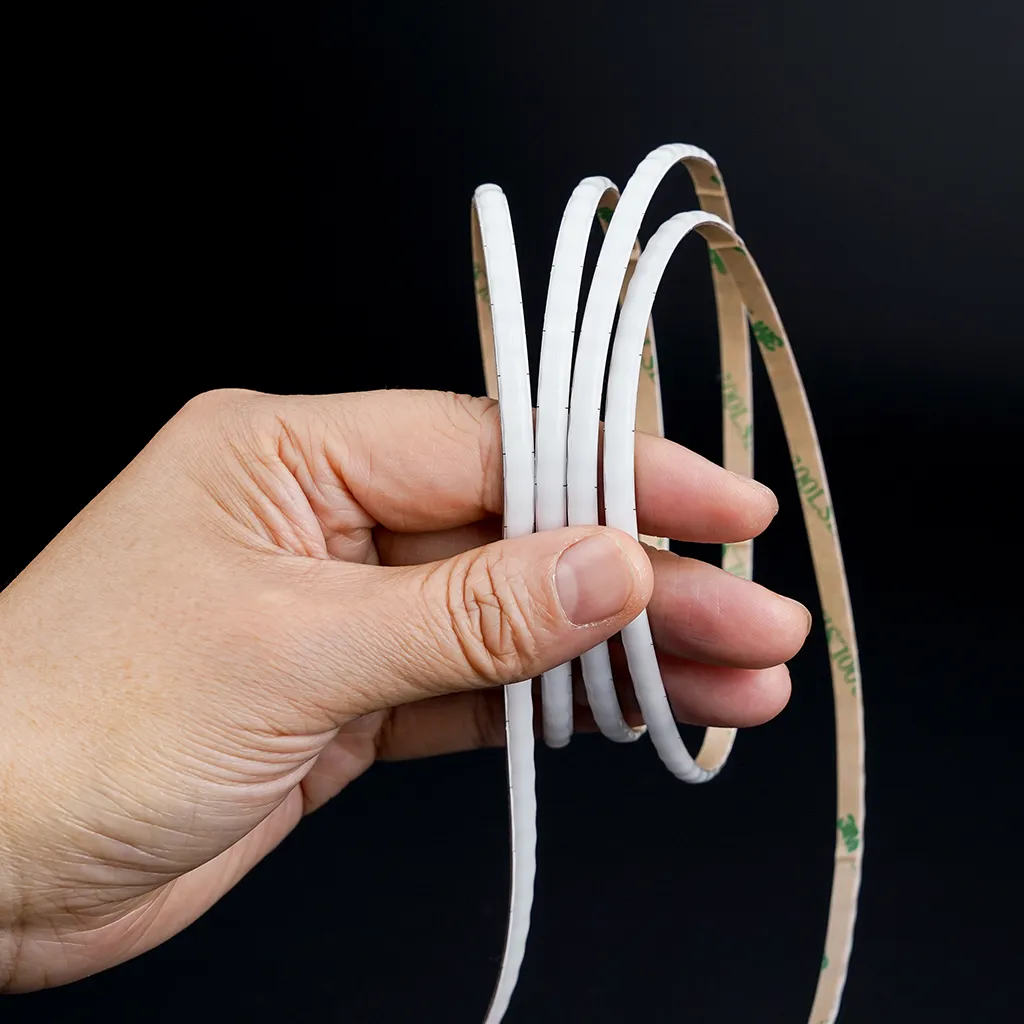

Flexible and resistant to bending

The board is resistant to bending and has good flexibility

12V Low Voltage Design

Operates at 12V, making it suitable for small projects or low-power applications. Ensure proper power supply to avoid unstable lighting due to insufficient voltage.

High-Brightness RGB LEDs

Equipped with high-brightness RGB LED beads, offering vibrant colors and uniform lighting for excellent visual effects.

Installation instructions

  • Clean the surface: Ensure the surface is free of dust and grease for better adhesion.
  • Cut the strip: Most LED strips have marked cutting points for safe and precise trimming.
  • Adhesive backing: Press firmly after sticking to ensure the strip stays in place.
  • Connect to the controller: Match the positive and negative terminals correctly to avoid damage.

Usage Notes

  1. Power Supply

    • Ensure a stable 12V power supply to avoid overload or insufficient voltage.
    • Additional power supply may be required for long-distance use to prevent light attenuation.

  2. Programming Support

    • Compatible with multiple programming languages and platforms, such as Arduino IDE and FastLED library, making it suitable for developers.

Application Scenarios

  • DIY Creative Projects: Such as smart home decorations, art installations, model lighting, etc.
  • Festival Decorations: Used for creating festive atmospheres during Christmas, Halloween, etc.
  • Commercial Displays: Suitable for lighting designs in shop windows, exhibition booths, etc.
  • Entertainment Devices: Such as RGB lighting effects for gaming consoles or PC cases.
Additional information

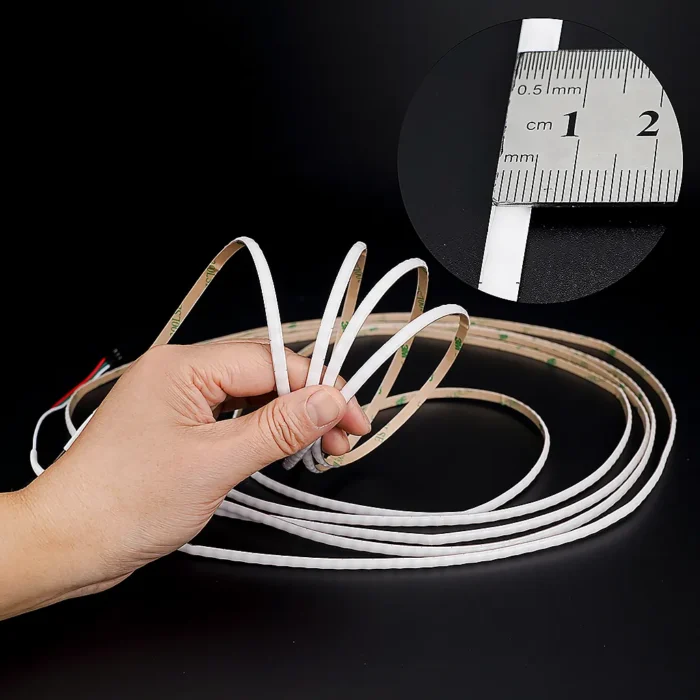

PCB Width

5mm

Voltage

12VDC

LED Quantity

160 LEDS Per Meter
