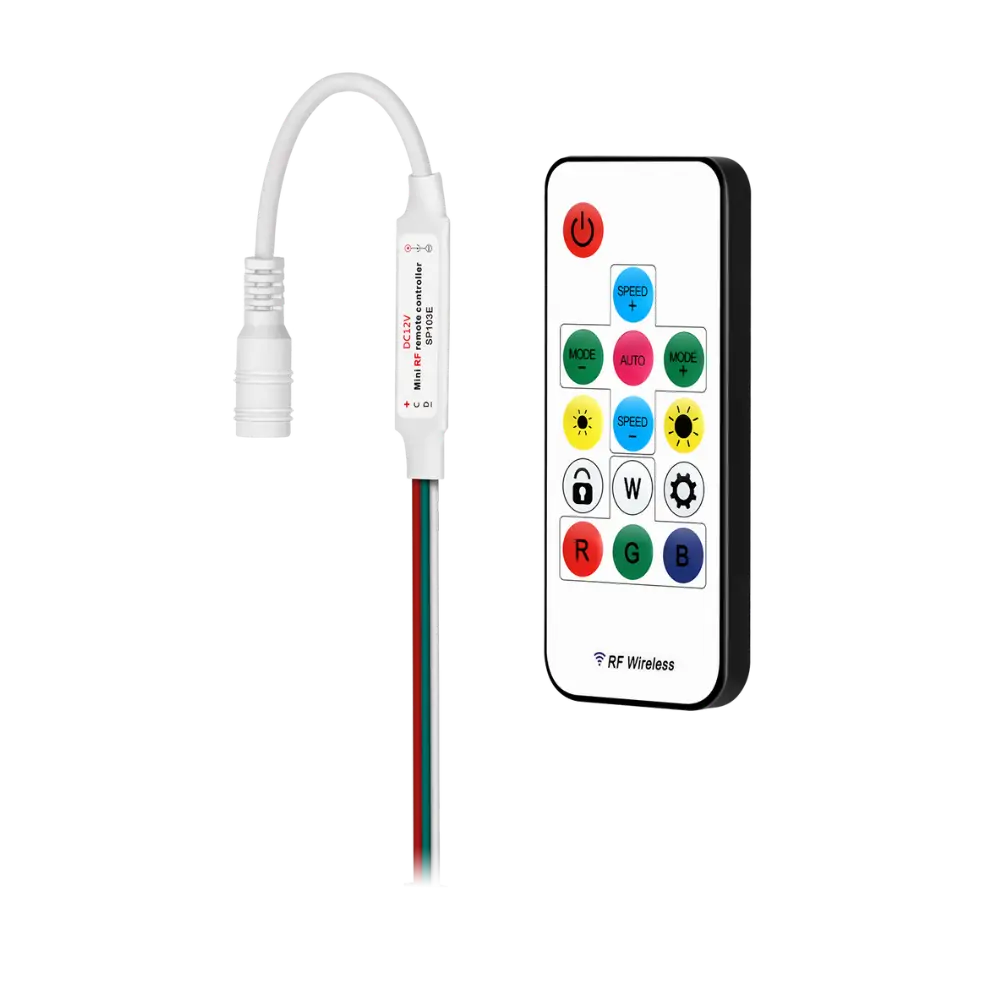

SP103E Mini-RF Remote Controller

Name: SP103E Mini-RF Remote Controller - yiford.com
SKU: YF-SP103E
Price: 35.00 USD
Availability: InStock

SKU: YF-SP103E

Original price was: $60.00.Current price is: $35.00.

Per Box

The SP103E Mini-RF Remote Controller utilizes RF radio frequency for wireless operation, with a control distance reaching up to 15 meters, ensuring sensitive and user-friendly responses. Its compact size and straightforward wiring make installation hassle-free. Equipped with 300 vibrant and dynamic pattern effects, it adds a dazzling touch to lighting setups. Moreover, it supports adjusting cascade points, capable of controlling up to 2048 pixel nodes for extensive illumination projects.

Add to wishlist

Compare

Prices are per box.
Prices will appear after all available options have been selected.
Shipping cost will appear after filling in the recipient’s company address and zip code.

Description

Brief

The SP103E Mini-RF Remote Controller utilizes RF radio frequency for wireless operation, with a control distance reaching up to 15 meters, ensuring sensitive and user-friendly responses. Its compact size and straightforward wiring make installation hassle-free. Equipped with 300 vibrant and dynamic pattern effects, it adds a dazzling touch to lighting setups. Moreover, it supports adjusting cascade points, capable of controlling up to 2048 pixel nodes for extensive illumination projects.

Features

1. RF Remote control, long distance, mini size, wire connection is simple and very easy to use;
2. Support almost every kind of one-wire or two-wire LED-DRIVER-IC ;(Can be customized)
3. With 300 kinds of patterns, which are vivid and beautiful;
4. Each controller can control up to 2048 pixels;
5. With user setting saving functionality;
6. Brightness adjustable.
7.Preventing reverse connection of power supply

Remote Controller

Functions Of Each Button:

Usages:

Testing

Continuously pressing the AUTO button 5 times until LED is off, release the AUTO button to into the mode of switching in red, green, blue, yellow, purple, cyan and white, which can test the your LED.

Matching

Continuously pressing the MATCH button 5 times until LED flash in white quickly to match the Remote control with the
receiving controller. Pressing the MATCH button for 5 times till LED flash in white slowly to un-match;

Reorder RGB

Differ from kinds of LED, The R G B keys may don’t perfectly match to your LED, Reorder them if needed. Continuously pressing the SETTING button 5 times until LED flash in white once and then turn into all white, Pressing the R button until LED is red, Pressing the G button until LED is green, pressing the B button till LED is blue, then press the SETTING button once to confirm your setting;

Adjust Num of pixels

The factory default setting of the number of controlled pixel is 600. Continuously pressing the SETTING button 5 times until
LED flash once and turn all white, pressing MODE+ to add pixels ,pressing MODE- to decrease pixels,(each pressing add or decrease60 pixels) then press the SETTING button to confirm your setting;Can be regulated to up to 2048 pixels,The minimumnumber is 300 pixels.

Catching

When in the AUTO mode, pressing the SETTING button once,and then press MATCH button once to catch the Current pattern to stayandoperate circularly.

Receiving Controller：

● Can be customized to support almost every kind of one-wire or two-wire LED-DRIVER-IC;
● The receiver controller has two kinds of working voltage :5V-supply-voltage or 12V-supply-voltage;
● Cautions: Please make sure the power supply voltage is match to your controller before you power it.

Additional information

Weight	3 kg
Dimensions	20 × 20 × 20 cm
Box	10 PCS
APP	No
Voltage	5VDC , 12VDC
Music mode	No
Remote control	Yes
Buttons	None
Wiring method	DATA , GND
Output signal	1 channel
Maximum pixels	2048 pcs
