SP617E Bluetooth Music RGBW-IC LED Controller

SKU: YF-SP617E

Original price was: $70.00.Current price is: $35.00.

Per Box

Supports multiple control methods including mobile APP, IR remote, and physical buttons.It features 152 built-in effect modes (with 10 new independent W-channel white light dynamic effects), allowing adjustment of effect duration and the ability to save favorite dynamic modes.

Add to wishlist
Compare
  • Prices are per box.
  • Prices will appear after all available options have been selected.
  • Shipping cost will appear after filling in the recipient’s company address and zip code.
Description

Brief

SP617 Bluetooth LED controller Supports multiple control methods including mobile APP, IR remote, and physical buttons. It features 152 built-in effect modes (with 10 new independent W-channel white light dynamic effects), allowing adjustment of effect duration and the ability to save favorite dynamic modes.

Features:

1. Supports both APP control and IR remote control;
2. Support automatic device connection;
3. Support group control;
4. Multiple sound collection methods: phone mic, player streaming, on-board mic;
5. Support modifying the device name, calibrate the RGBW channel sequence, and timer function;
6. Compatible with the RGBW 4 channel single-line RZ code driver IC like SK6812, SM16704, UCS2904, WS2814, TM1824, etc…can drive up to 450 pixels;
7. Individually controllable static pure white light (W channel).
8. Built-in 152 dynamic effects(10 kinds of W channel effect), effect length adjustable, with favor effects collecting function;
9. Built-in 18 music effects, effect length adjustable, sensitivity adjustable;
10. DC5~24V wide voltage input, the power supply has anti-reverse connection function;
11. Automatic saving function for setting parameters.

App Functions:

SP617E supports being controlled by APP, both IOS and Android version are available Apple devices are required IOS 10.0 or later, Android devices are required Android 4.4 or later Search “BanlanX” on the App Store or Google Play or scan the QR code to download and install the App:

App Functions:

App Operations:

• Open the App and click the on the upper right corner of the homepage, add devices by scanning for devices, or creating a group of multiple added devices;

Click on an individual device in the device list to access the control page to control the device individually;
Click on a group in the group list to enter the control page to control all devices in the group at the same time;

• User can modify the device name and calibrate the RGBW channel sequence by clicking on the upper right corner of the operation page.

• User can set up to five timing events by clicking on in the upper right corner, please note that all set timing events will be deleted when the controller is powered off.

• In the effects page, there are a variety of music effects and non-music effects, users can set speed, brightness color and effect length for a specific effect.

Note: User can find more detailed information and help by clicking the button in the top right corner.

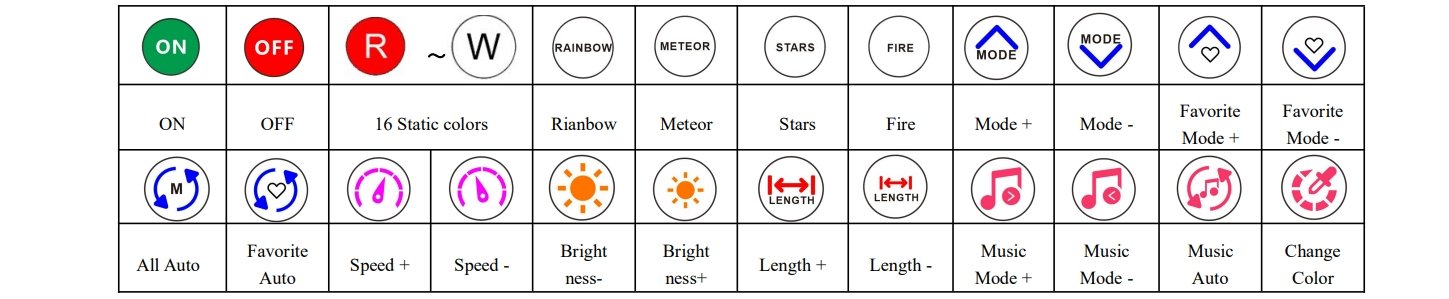

IR Remote Functions:

Note: The W button individually control the pure white(W channel); 10 kinds of W channel effects can be called out by button Mode + and Mode –

Button Functions:

On/Off button : Turning on or off the LED light;
Mode button M : Switching the effects;
Speed button S : Adjusting the speed of the non-music effects.

Technical Parameters：

Working temperature: -20℃~60℃
Controller Dimensions : 60mm*30mm*14mm(not including the wires)
Remote control Dimensions: 125mm*56mm*7.5mm；
Working voltage: DC5V~24V
Operating current: 15mA~28mA

Technical Parameters：

SP617E Bluetooth Music RGBW-IC LED Controller
Additional information
Weight 4 kg
Dimensions 30 × 30 × 20 cm
Box

10 PCS

APP

Yes

Voltage

DC5V-24V

Music mode

Yes

Remote control

Yes

Buttons

3 buttons

Wiring method

RGBW

Output signal

1 channel

Maximum pixels

450 pcs
