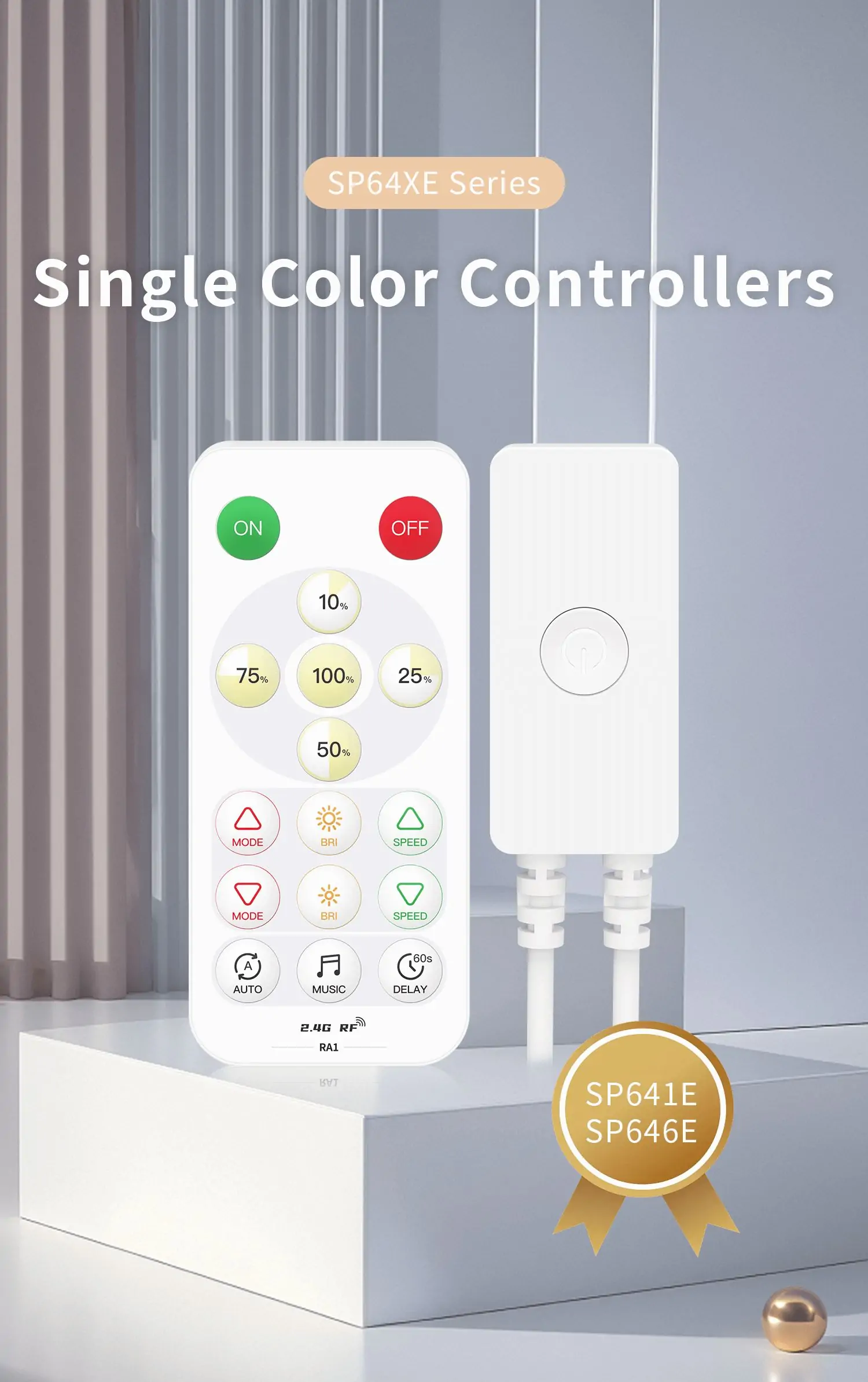

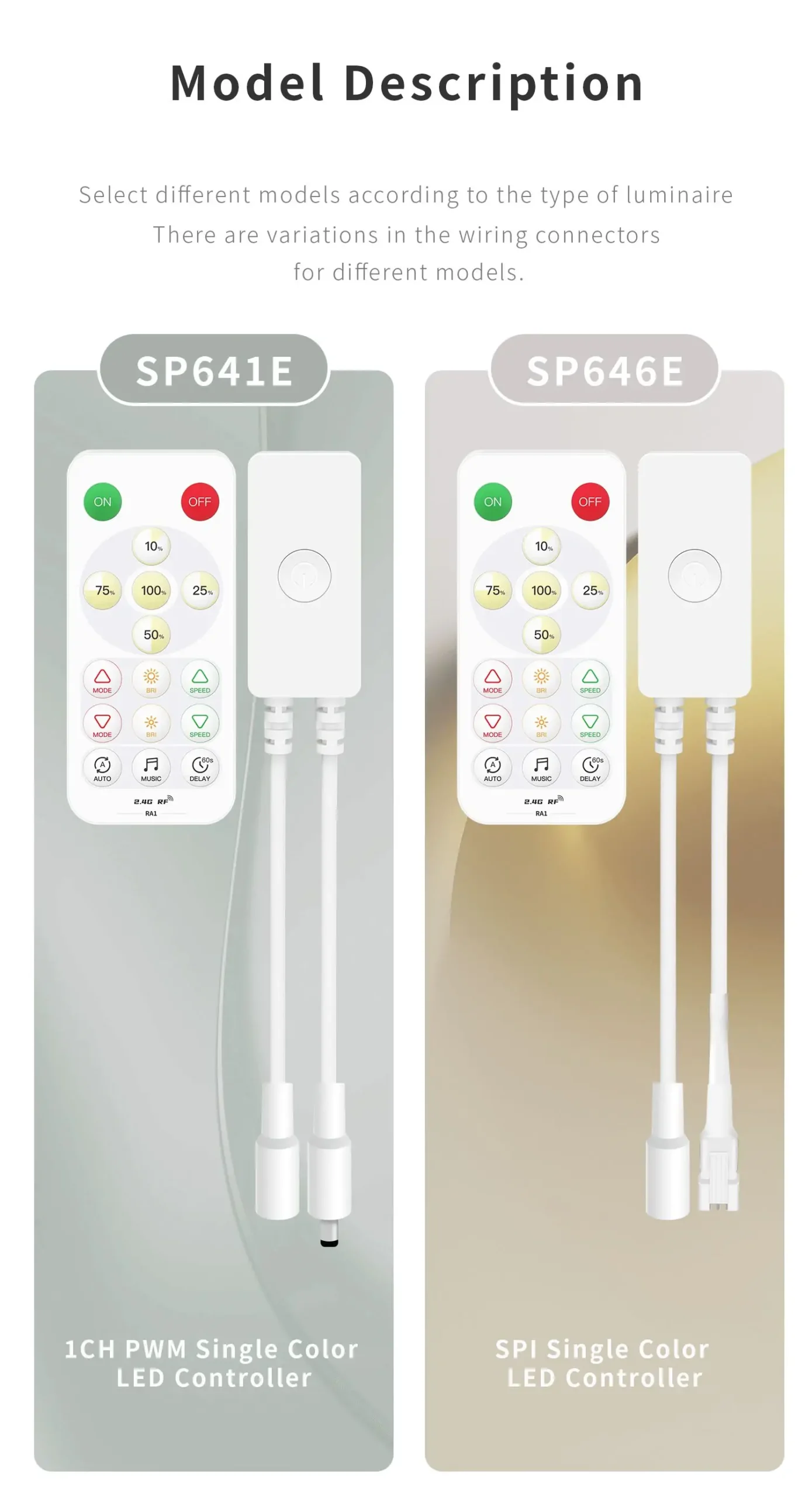

SP646E SPI Single Color LED Controller

Name: SP646E SPI Single Color LED Controller - yiford.com
SKU: YF-SP646E
Price: 45.00 USD
Availability: InStock

SKU: YF-SP646E

Original price was: $90.00.Current price is: $45.00.

Per Box

Single color SPI LED controller, with build-in dynamic effects and music reactive effect.

Add to wishlist

Compare

Prices are per box.
Prices will appear after all available options have been selected.
Shipping cost will appear after filling in the recipient’s company address and zip code.

Description

Brief

SPI Single color LED controller, with build-in dynamic effects and music reactive effect.

Features

1. Support App control and2.4G remote control;
2. Supports up to 1800 channels of single-wire RZ LED driver ICs;

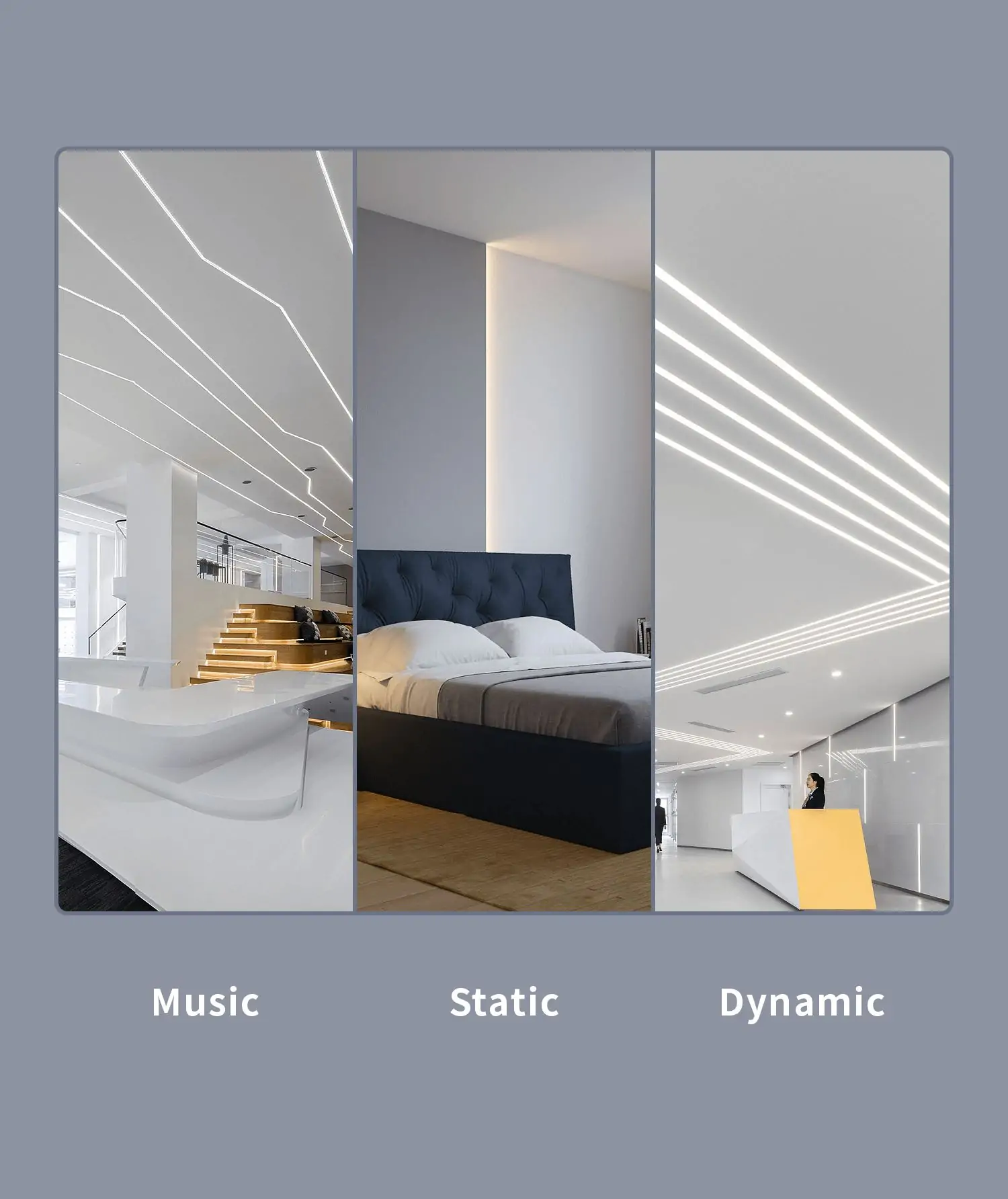

3. Built-in a variety of pure white light dynamic effects and music effects, with multiple adjustable parameters;
4. Capture music through the phone microphone, player streamer and on-board microphone;
5. Support effect collection;
6. With a variety of ON/OFF animation effects;
7. With ON/OFF timer function;
8. Support OTA firmware upgrade.

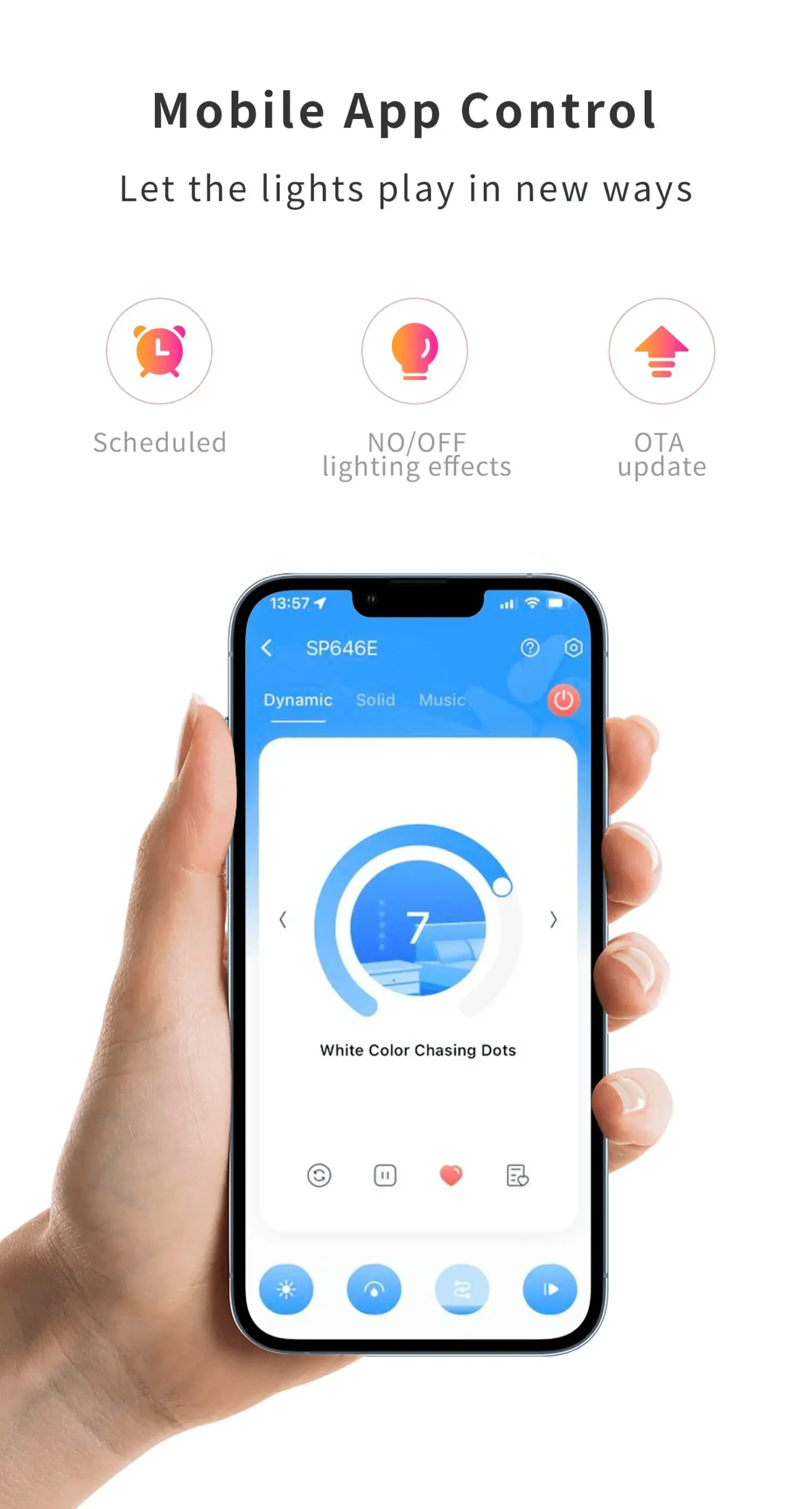

APP

1.SP646E supports App control for iOS and Android devices.
2.Apple devices require iOS 10.0 or higher, and Android devices require Android 4.4 or higher.
3.You can search “BanlanX”in App Store or Google Play to find the APP, or scan the QR code to download and install.

Operations

Open the App, click the icon in the top right corner of the home page to add device;
Click the icon in the upper right corner of the App to enter the settings page, where you can modify the device name, set the timings, set the on/off effect, OTA firmware upgrade, etc.

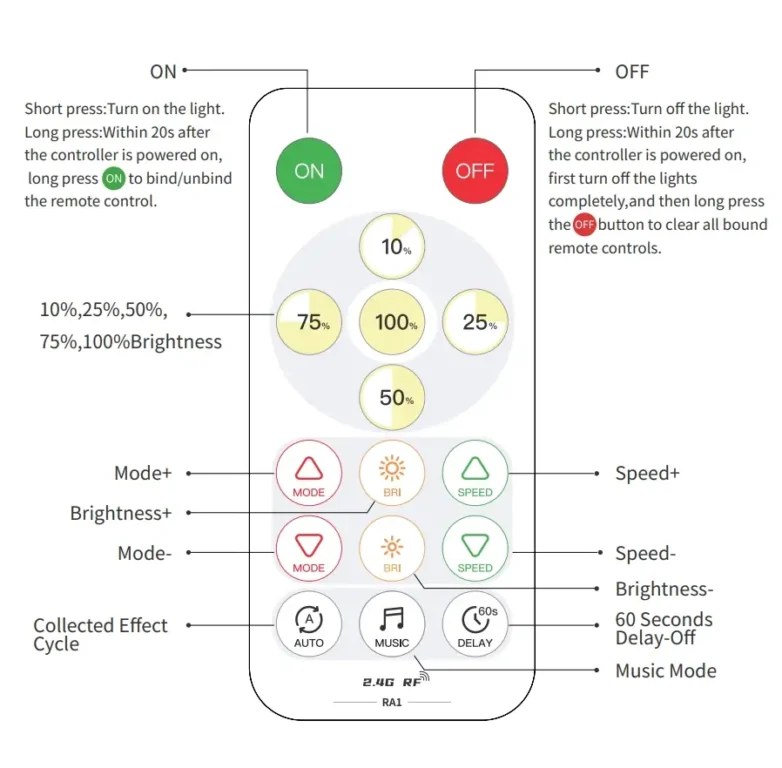

Work With 2.4G Remote Control

The 2.4G remote control models (RA1 ) matched with SP646E are as follows:

Support one-to-many control, one remote control can control multiple controllers.
Support many-to-one control, each controller can bind up to 5 remote controls.

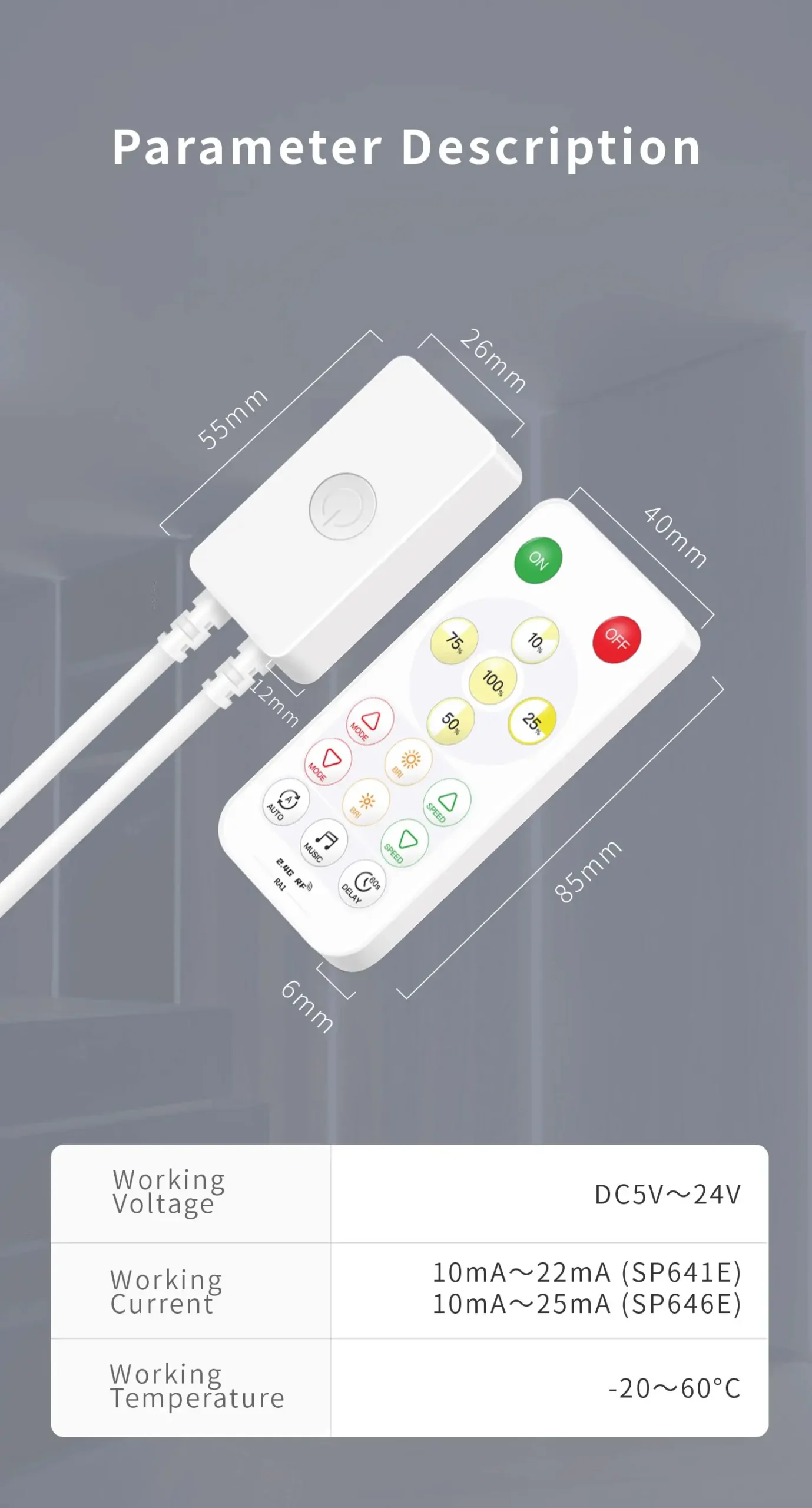

Technical Parameters

Working Voltage : DC5V~24V;
Working Current : 12mA~25mA;
Working temperature : -20℃~60℃;
Dimension : 55mm*26mm*12mm (not include wires)
