TV2020-1 Topview LED Silicone Sleeve

SKU: YF-TV2020-1

Original price was: $200.00.Current price is: $100.00.

Per Box

TV2020-1 is a highly recommended model in YIFORD’s LED silicone sleeve channel system lineup, designed for top view, front-facing light emission with a wide 120-degree beam angle. Its large light-emitting surface and flexible square profile make it an ideal choice for a variety of professional lighting applications, suitable for both illumination and decorative purposes.

  • Prices are per box.
  • Prices will appear after all available options have been selected.
  • Shipping cost will appear after filling in the recipient’s company address and zip code.
Description

YIFORD’s TV2020-1 LED Silicone Sleeve is a versatile and highly recommended product designed for professional use in various industrial and commercial settings. As part of YIFORD’s extensive range of LED lighting solutions, the TV2020-1 is engineered to provide efficient and reliable protection and installation for LED strips, enhancing their performance and longevity.

Product Overview

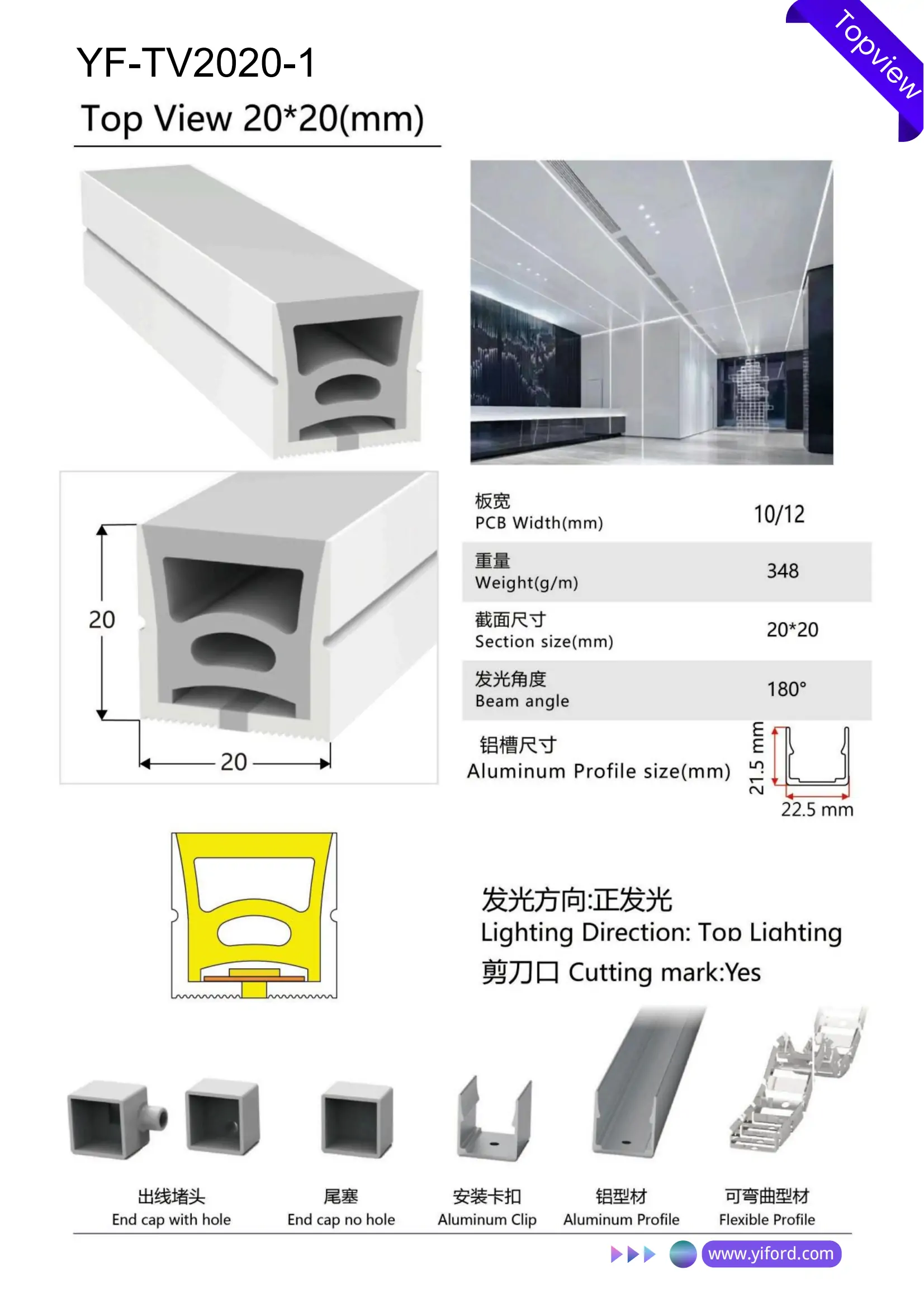

Model: YF-TV2020-1

Type: Topview LED Silicone Sleeve

Section Size: 20mm x 20mm

Recommended LED Strip Width: 10mm or 12mm

Material: High-Quality New Silicone

Features: Heat Insulation, Impact Resistance, Waterproof, Flexible, Durable

Applications: Indoor and Outdoor Lighting, Commercial Displays, Architectural Lighting, Decorative Lighting, and More

Large Light-Emitting Surface with Flexible Square Profile

Key Features:

Focused Illumination with a 120-Degree Beam Angle

Large Light-Emitting Surface:

The TV2020-1 features a cross-sectional size of 20mm x 20mm, with a 20mm-wide light-emitting surface. This large surface area ensures a substantial light output while maintaining a slim and flexible square profile, making it a highly recommended choice for applications requiring broad and effective lighting.

Topview Design with 180-Degree Beam Angle:

The TV2020-1 is specifically designed for front-emitting applications with a wide 180-degree beam angle, ensuring that light is directed forward for broader and more dispersed illumination. For those requiring a more focused 120-degree beam angle with the same dimensions, consider the TV2020-2 model.

Versatile Compatibility:

The TV2020-1 is recommended for use with either 10mm or 12mm wide LED strips, providing flexibility and maximum protection. It can be paired with a variety of accessories to enhance its functionality and ease of installation.

Accessories for TV2020-1

  • End Caps: Securely seal the ends of the led silicone sleeve, ensuring a watertight and dustproof enclosure. A variety of end cap styles are available to facilitate easy and versatile installation.
  • Mounting Clips: Facilitate easy and secure installation, allowing for flexible positioning and adjustment of the led strip silicone case.
  • Aluminum Profiles: With dimensions of 22.5mm x 21.5mm, these profiles offer additional structural support and improved heat dissipation for the silicone led channel system.
  • Flexible Aluminum Profiles: Provide enhanced flexibility for curved or irregular installations, complementing the flexible nature of the led silicone sleeve.

Durability and Protection:

Made from high-quality silicone, the TV2020-1 provides excellent heat resistance, impact resistance, and waterproofing. Its hollow design ensures that the LED strip remains protected while allowing for efficient light emission, making it a reliable led strip silicone case.

Ease of Installation:

The TV2020-1’s design simplifies the installation process, making it a cost-effective solution for professional users. The combination of the flexible led silicone tubing, LED strip, and end caps results in YIFORD’s SILICONE LED STRIP LIGHTS, a finished product that can be directly implemented in various projects.

Applications Ideas:

  • Interior Decor: Suitable for residential and commercial interiors where a wide and efficient lighting solution is required. The TV2020-1’s large light-emitting surface and wide 120-degree beam angle make it an excellent choice for creating ambient and accent lighting in various spaces.

  • Display Cases: Ideal for highlighting details in display cases and exhibitions due to its large light-emitting surface and front-emitting capability. The 180-degree beam angle ensures that the displayed items are well-lit from multiple angles, enhancing their visual appeal, making the led silicone sleeve a perfect choice.

  • Signage: Enhances the visual impact of signs and billboards with its wide light output. The TV2020-1’s size and efficient light distribution make it perfect for channel letter signs and other illuminated signage applications requiring broader coverage, utilizing the silicone led channel system.

  • Architectural Lighting: Use the TV2020-1 to create eye-catching lighting effects in architectural elements such as coves, under-cabinet areas, and other detailed features. Its flexibility and durability, combined with the wide beam angle, make it suitable for various building designs that benefit from a broader light spread, supported by the flexible led silicone tubing.

  • Retail and Commercial Spaces: The TV2020-1 can be used to enhance the ambiance and highlight products in retail stores, boutiques, and commercial spaces. Its large light-emitting surface and wide beam angle allow for creative lighting solutions that attract customers and improve the shopping experience, leveraging the led silicone sleeve.

  • Outdoor Lighting: While primarily used indoors, the TV2020-1’s waterproof and durable construction also makes it suitable for outdoor applications such as pathway lighting, garden features, and other exterior decorative elements where a wider light distribution is desired, thanks to the robust led strip silicone case.

Why Choose YIFORD’s TV1510?

YIFORD is a leading LED lighting supplier, specializing in providing materials and finished products to manufacturers, distributors, design firms, builders, and engineering contractors. With over 300 different models of silicone tubes and over 300 different models of COB/SMD LED strips, YIFORD offers thousands of combinations for silicone LED strip lights. The TV2020-1’s large light-emitting surface, flexible square profile, and wide illumination make it an excellent choice for professionals seeking reliable and high-performance lighting solutions.

The TV2020-1’s dimensions and front-emitting design with a 120-degree beam angle make it an ideal choice for a wide range of applications. Its compatibility with either 10mm or 12mm-wide LED strips and various accessories ensures flexibility and ease of installation. For those needing a more focused 180-degree beam angle with the same dimensions, the TV2020-2 model is available.

For more information and to explore our full range of products, please visit our website’s DOWNLOAD page, where you can access catalogs for both our Silicone LED Channel System and Silicone LED Strip Lights series. Contact YIFORD today to discover how our TV2020-1 can enhance your next project.

Overview of YIFORD’s Silicone LED Channel System

YIFORD’s LED Silicone Sleeve, also known as silicone tube, or silicone sleeve, silicone diffuser and so on, is designed specifically for LED strips and offers a range of benefits including heat insulation, impact resistance, and waterproofing.

These systems are hollow and come in various sizes and shapes, accommodating LED strips from as narrow as 3mm to as wide as 30mm.

They are available in different light-emitting angles, such as 120°, 180°, 270°, and 360°.

Package roll of 50 meters, 100 meters or 200 meters, Can be cut at any position.

Yiford can also add the woven ropes to the outside of the silicone led channel system to increase the artistic effect of the light or special functions.

YIFORD’s Silicone LED Channel System is categorized into the following types:

Topview Type: Suitable for applications requiring forward-bending LED strips.

Sideview Type: Ideal for applications needing side-bending LED strips.

Round Type: Perfect for applications requiring a larger light-emitting angle and a circular light effect.

Black Type: Designed for applications where reduced light pollution or specific design requirements are needed.

Fringe Type: Offers additional protection and securing features.

Half Cover Type: Allows for direct application over LED strips without threading them through the tube beforehand, primarily for indoor use.

All In One Co-Extrusion Type: LED strips are fused with silicone material using machinery, resulting in a finished product with enhanced aesthetics, durability, and special functions.

When LED strips are combined with the Silicone LED Channel System and end caps, they form YIFORD’s SILICONE LED STRIP LIGHTS, a complete product line available in a separate catalog on our website’s DOWNLOAD page.

Installation Instructions:

1.Preparation:

Measure the area where the channel will be installed and cut the silicone channel to the desired length using appropriate cutting tools.

2. LED Strip Insertion:

Insert the chosen LED strip into the channel, ensuring it fits snugly within the silicone casing.

3. Sealing:

Attach the end caps securely to both ends of the channel to prevent moisture and dust ingress.

4. Mounting:

Use the provided mounting clips to affix the channel to the desired surface, ensuring it is level and securely anchored.

5. Power Connection:

Connect the LED strip to an appropriate power source, adhering to standard electrical safety protocols.

silicone led channel system accessary

Below Video About How to insert the led strips into Silicone Channel System--Step By Step

Additional information
Section Size

20×20 mm

PCB Width

10mm

,

12mm

Beam Angle

120°
